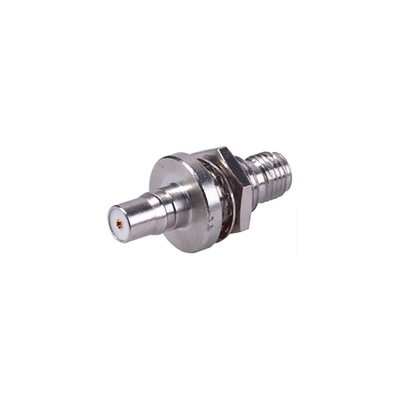

34_QMA-SMA-50-1/133_NE, Huber+Suhner 50Ω Coaxial Adapter Socket Socket 18GHz

The Huber & Suhner coaxial adapters has 50 Ohm impedance. It has 18 GHz impedance frequency. The RF Coaxial adapter is a single piece component allowing the connection of two different pieces of equipment that cannot be joined directly.

Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 2.5 GHz 2.5 to 6 GHz 6 to 18 GHz
Return loss = 33 dB = 25 dB = 18 dB
Chassis torque 4 Nm
Number of mattings 100
Weight 0.0074 kg
Operating temperature -40 °C to 85 °C

Datasheet - 34_QMA-SMA-50-1/133_NE
