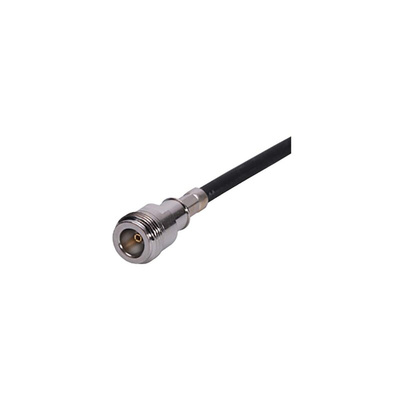

Huber+Suhner 21_N-50-4-6/133_NH Series, jack Cable Mount N Connector, Crimp Termination, Straight Body, Разъем

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss = 31.5 dB = 24.5 dB = 19 dB
Centre contact plugged
Outer contact crimped
Weight 0.022752 kg
Operating temperature -65 °C to 165 °C

Datasheet - 21_N-50-4-6/133_NH
