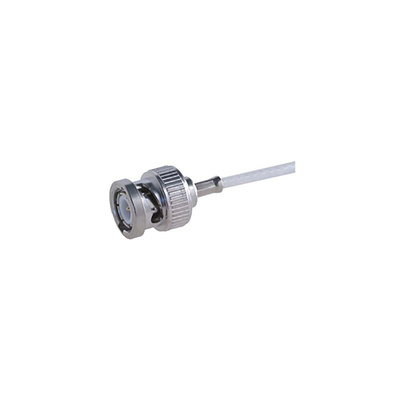

Huber+Suhner 11_BNC-75-4-6/133_NE Series, Plug Cable Mount BNC Connector, 50Ω, Crimp Termination, Straight Body

The Huber & Suhner coaxial connector has 75 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 1 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 75 O
Interface frequency max. 1 GHz
Frequency range DC to 1 GHz
Return loss 21 dB
Centre contact crimped
Outer contact crimped
Weight 0.0103 kg
Operating temperature -65 °C to 165 °C

Datasheet - 11_BNC-75-4-6/133_NE
