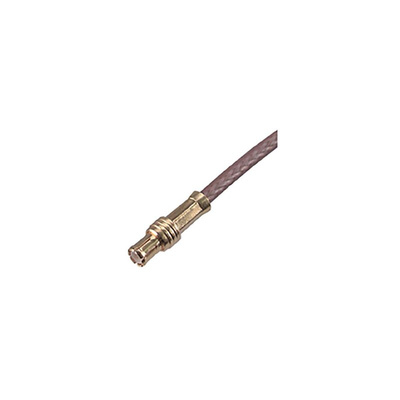

Huber+Suhner 11_MCX-50-2-15/111_NE Series, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Straight Body

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 6 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 6 GHz
Frequency range DC to 1 GHz 1 to 2 GHz 2 to 2.5 GHz
Return loss 30 dB 30 dB 25 dB
Centre contact crimped
Outer contact crimped
Weight 0.0008 kg
Operating temperature -55 °C to 155 °C

Datasheet - 11_MCX-50-2-15/111_NE
