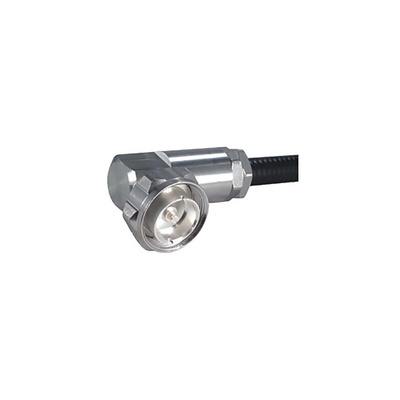

Huber+Suhner 16_716-50-9-5/033_-E Series, Plug Cable Mount, 50Ω, Clamp Termination, Right Angle Body

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 7.5 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 7.5 GHz
Frequency range DC to 2.5 GHz 2.5 to 3 GHz
Return loss = 30 dB = 28 dB
Intermodulation = Static -155 dBc (2 x 43 dBm carrier)
Centre contact plugged
Outer contact clamped
Weight 0.2101 kg
Operating temperatu

Datasheet - 16_716-50-9-5/033_-E
