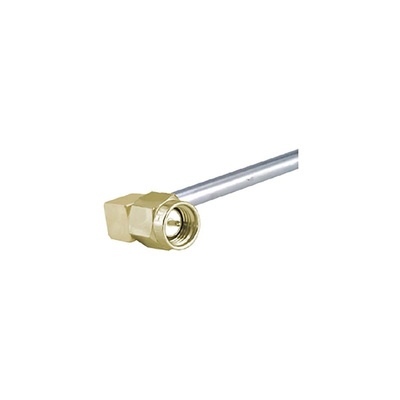

Huber+Suhner 16_SMA-50-3-3/111_NH Series, Plug Cable Mount SMA Connector, Solder Termination, Right Angle Body

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.

Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 2 GHz 2 to 12 GHz 12 to 18 GHz
Return loss 32 dB 23 dB 10 dB
Centre contact soldered
Outer contact soldered
Weight 0.0045 kg
Operating temperature -65 °C to 165 °C

Datasheet - 16_SMA-50-3-3/111_NH
