Rittal Cable Gland HD - 2410001 Series Metallic Stainless Steel Cable Gland, M12 Thread, 3mm Min, 6 5mm Max, IP68

Rittal Cable Gland, M12, 6.5mm Maximum Cable Diameter - 2410001 Series - 2410001

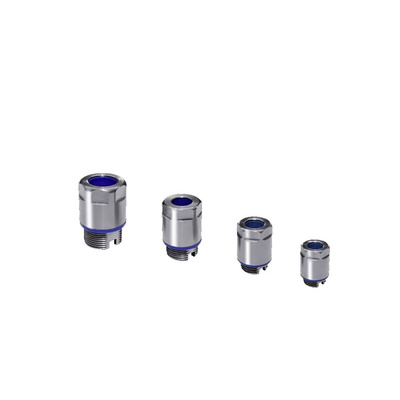

Use this cable gland from Rittal for effectively and securely attaching cables to your electrical equipment and machinery. It has a stainless steel cap nut that resists heat, corrosion and chemicals, so you can rest assured it's a durable choice for use in harsh environments. The smooth exterior surfaces are easy to maintain to help prevent the growth of bacteria or other micro-organisms. This makes this cable gland a practical option for use in food processing and packing, as well as other environments where cleanliness is essential.

Features & Benefits

• M12-sized threaded connection for a secure and simple attachment
• Wide operating temperature range of -20°C to +100°C for use in harsh industrial conditions
• Comes with a lock nut for a secure fit
• Supports cable entry sizes between 3 and 6.5mm for versatility

Applications

• Food and beverage processing
• Biotechnology
• Pharmaceutical industry
• Chemical processing

Is this cable gland protected against moisture?

Yes, this cable gland has an IP68 (ingress protection) rating, so it's dust-tight and able to withstand submersion in 1m of water for up to 30 minutes.

Datasheet - 2410001

Line Drawing - 2410001
