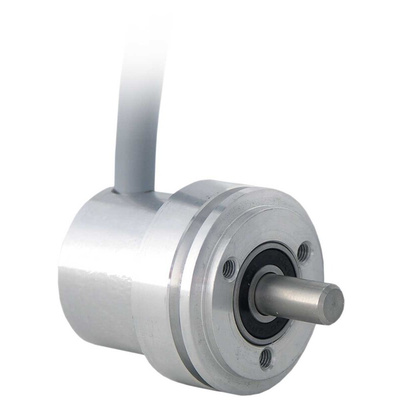

RS PRO Incremental Incremental Encoder, 512 ppr, HTL Signal, Solid Type, 6mm Shaft

RS PRO Rotary Encoder, Incremental, 30 mm Synchro Flange

From our trusted and reliable own brand RS PRO, this rotary encoder with incremental encoder technology allows for easy measurement of speed, position and distance in a wide selection of automation applications. These encoders with incremental technology feature a durable aluminium and stainless steel design with synchro flange mount type, offering a compact and robust encoder that is quick and easy to install. These encoders utilise a push-pull output type ensuring reliability and accuracy. With a supply voltage of 5V dc to 30V dc, max operating speed of 12000rpm and permissible bearing loads, these encoders provide the reliability of larger encoders in a compact unit.

Features and Benefits

• Compact design for use in a range of applications


• Synchro flange mount type for ease of installation


• Robust design manufactured from aluminium and stainless steel


• IP40 rating offering protection against ingress of debris


• Permissible bearing loads similar to larger encoders


• Hall effect based signal generation


• 512 Pulses per revolution (ppr)


• Max operating speed: 12000rpm


• Output signal type: HTL / Push-Pull


• Max. permissible shaft loading radial: 80N


• Max. permissible shaft loading axial: 50N

Applications

Rotary encoders feature a rotary sensor technique and are used in a wide range of industrial automation applications, allowing for precise measurement of speed, position, angle and length of objects and components. Rotary encoders are commonly used in applications such as:

• Lifts


• Cranes


• Cleaning machines


• Road marking


• Wind energy

Certifications

IP40 / CE / DIN EN 61000-4-2 / DIN EN 61000-4-4

What is the difference between Incremental and absolute?

Absolute rotary encoders tend to be for applications that require angles to be measured whereas incremental is used for the measurement of speed, length and position.

Why RS PRO?

RS PRO is our own brand range and brings you a wide variety of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
