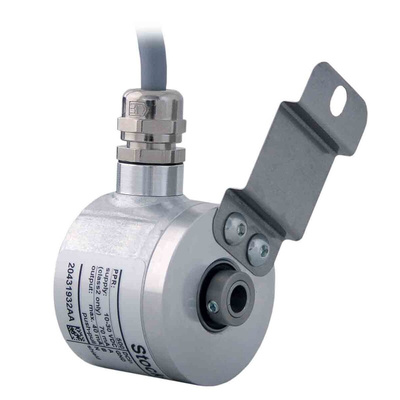

RS PRO Incremental Incremental Encoder, 500 ppr, HTL Signal, Hollow Type, 6mm Shaft

RS PRO Rotary Encoder, Incremental, 40 mm Hollow Shaft (Through-Bored)

For automation applications requiring precise measurement and adjustment of speed, position and distance, this rotary encoder with incremental encoder technology from our trusted own brand RS PRO is the perfect solution. These incremental encoders feature a hollow shaft (through-bore), making them ideal for mounting to a motor shaft. This allows them to be installed much easier than shafted encoders, as there is no need for a coupling. This robust industrial standard encoder features housing cap diecast aluminium, with particularly eco-friendly powder coating offering excellent durability and corrosion resistance and includes an IP65 rating ensuring protection from dust and moisture. This rotary encoder produces 500 PPR (pulses per revolution), utilising 2 ball precision bearings and is ideal for use in a variety of industrial automation applications.

Features and Benefits

• Hollow shaft (thru-bore) mounting type design making it ideal for mounting to a motor shaft


• Compact and robust design


• Quick and easy to install


• Housing cap die cast aluminium, with particularly eco-friendly powder coating ensuring resistance to corrosion


• IP65 rating offering protection against dust and moisture ingress


• Full connection protection with 10V dc up to 30V dc


• 500 pulses per revolution


• Max. permissible shaft loading radial 100N


• Max. permissible shaft loading axial 50N


• Incremental quadrature, optical encoder technology

Applications

Rotary encoders feature a rotary sensor technique and are used in a wide range of industrial automation applications, allowing for precise measurement of speed, position, angle and length of objects and components. Rotary encoders are commonly used in applications such as:

• Lifts


• Cranes


• Cleaning machines


• Road marking


• Wind energy

Certifications

IP65 / CE / DIN EN 61000-4-2 / DIN EN 61000-4-4
