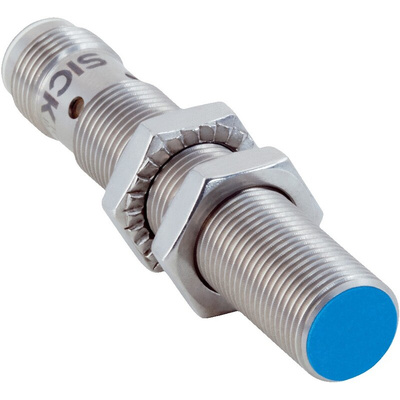

IMC12-04BPPVC0SC05, Sick Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Normally Open Output, 10 → 30 V,

Easily and reliably detecting double films Detecting double layers in film stack processes, e.g. in battery production, is a huge challenge. The new IDF double film sensors reliably detect whether a suction gripper has picked up one or several films and ensure that the unwanted double film is immediately sorted out. Due to its small size, the sensor can be integrated directly into the gripper. In addition, in contrast to other solutions, the IDF does not need a receiver unit. It thus detects the films as soon as they are picked by the gripper, so only from one film side. This speeds up the process times. Teaching-in different films is done in mere seconds, and can be performed either by teach-in via a cable or via IO-Link.

Detection is done directly when film is picked up by the gripper, which speeds up process times
Improves process quality thanks to immediate detection of double layers
Quick commissioning thanks to teach-in via cable or IO-Link
Quick format change thanks to teach-in via cable or IO-Link
Small size enables freedom with respect to machine design
Thanks to diagnosis options via IO-Link, the IDF detects even double film layers which were very difficult to detect up to now. This improves the process stability.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - IMC12-04BPPVC0SC05
