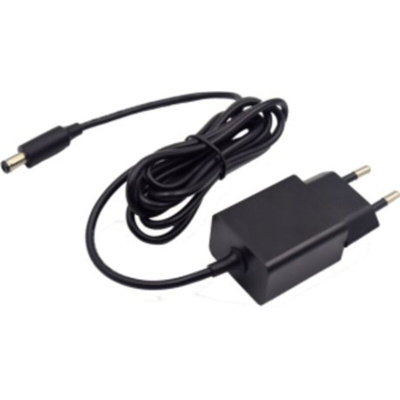

RS PRO 7W Plug-In AC/DC Adapter 12V dc Output, 630mA Output

RS PRO 12 Vdc AC / DC Adapter and Plug-in Power Supply

Introducing the RS PRO Universal Plug-in Power Supply a high-quality, low-cost switching plug-in power supply unit suitable for generic use. The power supply comes with a European 2 Pin Plug and a 5.5mm x 2.1mm x 12mm DC Jack output connector, making this a multi-use supply that can be used in a wide range of applications and features an overload and circuit proof function for additional protection. This RS PRO power supply is cost-effective, highly reliable and designed for use in multiple countries, making it the first choice for your needs.

Features and Benefits:

• This cost-effective and reliable RS PRO plug-in power supply is a universal power supply suited to a wide range of applications


• The ultra-slim switching adapter offers double insulation for added protection, ErP Step 2 compliance and low standby power consumption


• It comes with a European 2 Pin Plug and a 5.5mm x 2.1mm x 12mm DC Jack output connector


• Equipped with overload and short circuit protection

Applications:

Universal power adapters are very useful accessories that can be used for a wide range of PSU and battery charger applications and in a variety of environments. They often offer a multi-use or all in one solution to provide a convenient external power supply for the user and can often be used to power or charge electronic devices:

• Single-board computers and peripherals


• Gaming machines


• Network equipment


• Point of Sale equipment


• Telecommunications


• Wireless communications


• Tablets / Smartphones

Output current rating is 0.63A
Output power rating is 7W
Rated input voltage ratinging from 100VAC and 240VAC
Over current protection
Short current protection
Over current protection
Voltage isolation is 3000VAC
1.5m, 24AWG cable

RS PRO Datasheet
