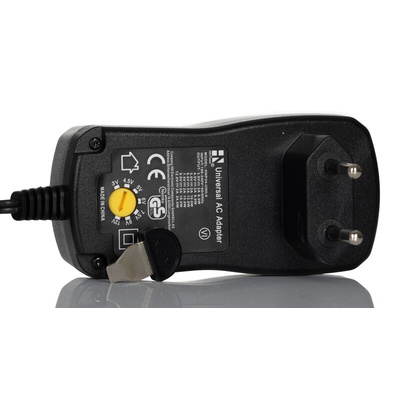

RS PRO 9W Plug-In AC/DC Adapter 3, 4.5, 5, 6, 7.5, 9, 12V Output, 2A Output

RS PRO AC / DC Universal Adapter and Plug-in Power Supply

Introducing the RS PRO Universal Plug-in Power Supply a high-quality, low-cost switching plug-in power supply unit suitable for universal use. The power supply comes with 6 interchangeable plug adapters, making this a multi-use supply that can be used in a wide range of applications and features an overload and circuit proof function for additional protection. This RS PRO power supply is cost-effective, highly reliable and designed for use in multiple countries, making it the first choice for your needs.

Features and Benefits:

• This cost-effective and reliable RS PRO plug-in power supply is a universal power supply suited to a wide range of applications


• The ultra-slim switching adapter offers double insulation for added protection, ErP Step 2 compliance and low standby power consumption


• It comes with 6 Interchangeable DC connectors and an EU Type C AC adapter (mains)


• Equipped with overload and short circuit protection, as well as 7 varying output voltages

Applications:

Universal power adapters are very useful accessories that can be used for a wide range of PSU and battery charger applications and in a variety of environments. They often offer a multi-use or all in one solution to provide a convenient external power supply for the user and can often be used to power or charge electronic devices:

• Single-board computers and peripherals


• Gaming machines


• Network equipment


• Point of Sale equipment


• Telecommunications


• Wireless communications


• Tablets / Smartphones

Multiple Output Voltages: 4.5, 5, 6, 7.5, 9, 10 and 12 V dc
Output current rating is 2A

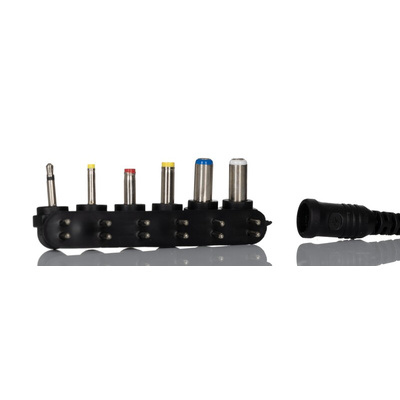

6 DC connectors included: 3.5*1.35, 5.5*2.1, 5.5*2.5, 2.35*0.7, 4.0*1.7, 2.5 mono plug
Power rating is 9W, 10W, 12W, 15W, 18W, 20W, 24W
Universal input voltage of 90VAC to 264VAC
Double insulated
Small low profile package
Overload, short circuit protection
Low standby power consumption

RS PRO Datasheet
