RS PRO 15W Plug-In AC/DC Adapter 5V dc Output, 2.4A Output

RS PRO 36W AC / DC Universal Desktop Adapter and Plug-in Power Supply

Introducing the RS PRO Universal Desktop Plug-in Power Supply a high-quality, low-cost switching plug-in power supply unit suitable for universal use. The power supply comes with 6 interchangeable plug adapters, making this a multi-use supply that can be used in a wide range of applications and features an overload and circuit proof function for additional protection. This RS PRO power supply is cost-effective, highly reliable and designed for use in multiple countries, making it the first choice for your needs.

Features and Benefits:

• This cost-effective and reliable RS PRO desktop plug-in power supply is a universal power supply suited to a wide range of applications


• The ultra-slim switching adapter offers double insulation for added protection, ErP Step 2 compliance and low standby power consumption


• It comes with 6 Interchangeable DC connectors and an EU Type C AC adapter (mains)


• Equipped with overload and short circuit protection

Applications:

Universal power adapters are very useful accessories that can be used for a wide range of PSU and battery charger applications and in a variety of environments. They often offer a multi-use or all in one solution to provide a convenient external power supply for the user and can often be used to power or charge electronic devices:

• Single-board computers and peripherals


• Gaming machines


• Network equipment


• Point of Sale equipment


• Telecommunications


• Wireless communications


• Tablets / Smartphones

7 var. output voltages possible are 5VDC, 6VDC, 7.5VDC, 9VDC, 12VDC, 13.5VDC, 15VDC
Output current ratings are 2.4A and 3A
Universal input voltage of 90VAC to 264VAC

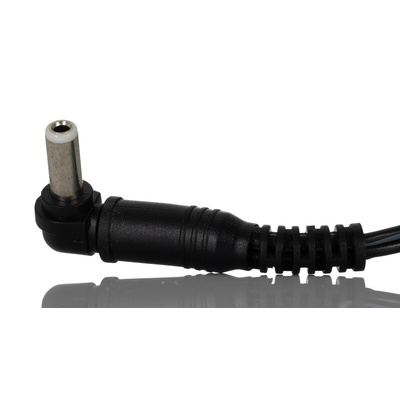

6 DC connectors included- 3.5*1.35 ,5.5*2.1,5.5*2.5,2.35*0.7,4.0*1.7,2.5mono plug
Power rating ratings are 15W,18W, 22.5W, 27W, 36W, 32.5W, 36W
Double insulated
Small low profile package
Overload, short circuit protection
Low standby power consumption

RS PRO Datasheet
