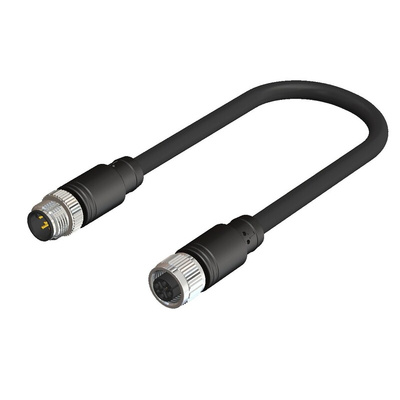

RS PRO Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 5m

RS PRO M12 Female to M12 Male Cable Connector

Brought to you under the trusted RS PRO brand a new range of M12 cable assemblies commonly used in sensor and automation equipment. These M12, 5 core connector cable assemblies are available with female to male ends that securely connects and boasts a high degree of environmental protection making them ideal for when secure and reliable data transference is required.

Why would you choose these cable connectors?

RS PRO M12 connectors are made from high-quality materials, offer a 5-pin configuration, and are M12 female to M12 male straight connectors. The connector cables are made of durable nickel-plated brass housing material with gold plated supplied neoprene O-Ring carrier. Both are rated at 60V, 4A current, and available in 2 m or 5 m length.

Features and Benefits

• M12 Female to M12 Male
• Cable Type: 5 Core PVC Multi Strand
• Brass nickel-plated coupling nut
• Cable Length: 2 m or 5 m
• Sheath Colour: Black
• IP67

Material Specification

• Grip Material: PU
• Contact: Cu-Zn
• Cross Section of Wire: 0.75 sq. mm
• Contact Plating: Gold Flash
• Contact Carrier: Nylon 66
• Grip Colour: Black
• Coupling Nut: Brass Nickel-Plated

General Specification

• Current rating: 4A
• Voltage: 60 V
• Temperature range: -25°C to +75°C
• Insulation Resistance: 100 MΩ

RS PRO M12 Female to M12 Male Cable Connector Options

• Female/Male, M12, 5 Core, 2m length; RS stock no: 206-4939
• Female/Male, M12, 5 Core, 5m length; RS stock no: 206-4940

Applications

Industrial Automation
Automation control
Hydraulics
Pneumatics and lift stations
