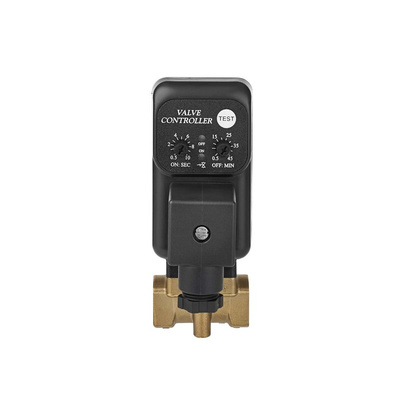

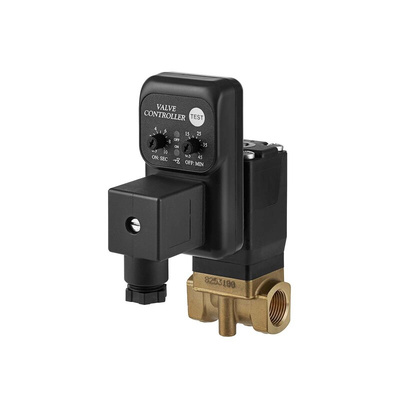

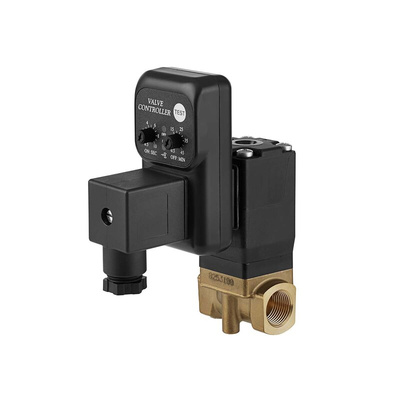

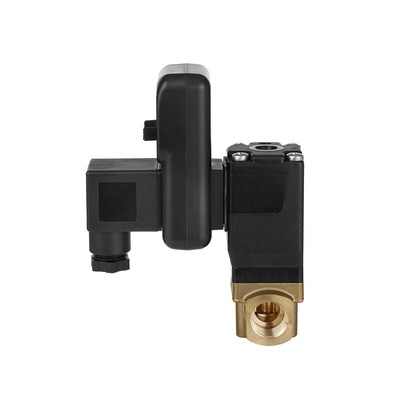

RS PRO Automatic G3/8" 240v pneumatic dr

RS RPO Pneumatic Drain Valve G 3/8 240V

Looking for a drain valve then consider the RS PRO Automatic G 3/8 240V pneumatic drain valve. This device is designed to provide automatic draining for your compressed air systems. An automatic drain valve is excellent at removing liquid collected by condensation and contaminants.

Where would you use a pneumatic drain valve?

Pneumatic drain valves are commonly found on compressed air tanks. When compressed air is cooled condensation collects in the bottom of the tank and must be removed. Draining this condensate is a necessity to prevent water from getting into the system drain lines, air tools, and prevent the development of corrosion.

How do you service a pneumatic drain valve?

The RS RPO pneumatic drain valve is relatively simple to service when the timer, drain hose, and auto drain are disassembled. Using air or a lubricant like WD40 to remove the dirt and debris will ensure the device is working as it should be.
Note: The cleaning process should always be carried out by a qualified engineer.

Features and Benefits

• Timer with solenoid protection
• Self-activated control
• Manual override
• Programmable
• LED indicator

Specification

• Drain Type: Automatic
• Inlet Port: G 3/8
• Outlet Port: G 3/8
• Supply Voltage: 240V AC
• Body Material: Brass
• Seal Material: NBR
• Operating Pressure: 0 -10bar
• Media: Neutral gasses and liquids
• Operating Temp Timer: -10 to +60 C
• Operating Temp Valve: -10 to +50 C (ambient)
• Operating Temp Valve: -10 to +90 C (media)
• Height: 123 mm
• Width: 44 mm
• IP Rating: IP65

Option to consider

RS PRO Automatic R 3/8 240V Pneumatic Drain Valve Brass, 123 x 96mm IP65, 0 → 16bar – RS stock no: 725-125

Applications

Industrial & Commercial
Auto body repair shops
Machine workshop
Military
