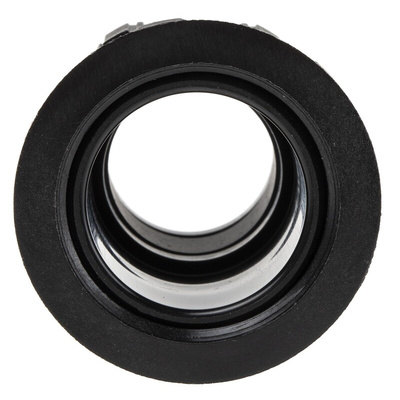

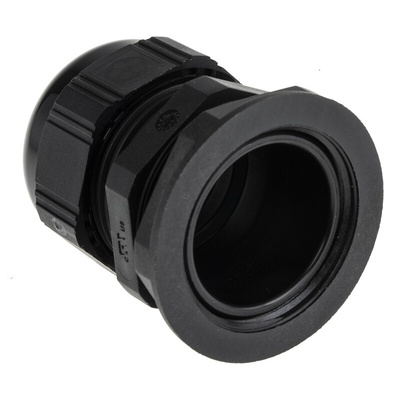

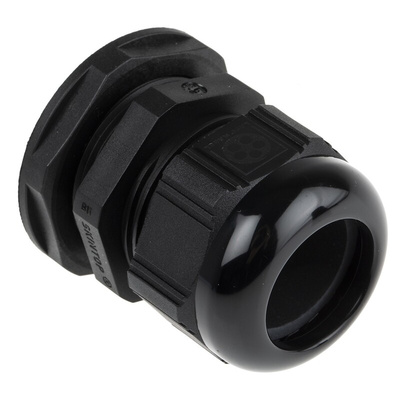

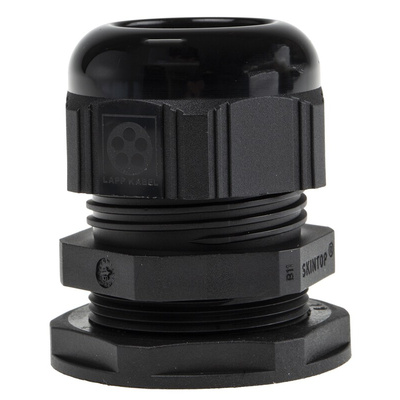

53015260+53019260, Lapp SKINTOP Series Black Polyamide Cable Gland, PG29 Thread, 14mm Min, 25mm Max, IP68, Кабельный ввод

Skintop IP68 PG Nylon Gland

From Lapp, the Skintop ST series of cable glands have a tough polyamide construction, and offer a high degree of environmental protection. Whether you’re connecting to panels, junction boxes or machinery casing, these cable glands are an easy-to-install solution in cable management.

With a simple screw-on design, the Skintop ST series ensures fast assembly times, and offer a variable clamping range with excellent strain relief. This series of glands have PG measurements.

These cable gland also feature a high degree of temperature, mechanical and oil resistance. Coupled with their permanent vibration protection, this makes them ideal for use with heavy machinery in industrial environments.

Features and Benefits

• Easy to Install
• Wide Clamping Range
• PG Measurements
• IP68, 5 bar Protection
• Mechanical Resistance
• Temperature Resistance
• Oil Resistance
• Chemical Resistance
• Vibration Protection

Applications

The Skintop ST series of PG cable glands can be used where ever wires and cables need to be inserted into panel-style housings through pre-bored holes. Their space saving design makes them ideal for;

• Machine and Equipment Manufacturing
• Photovoltaic and Solar Electric Technology
• Control and Automation Technology

Environment

These cable glands are sealed to IP68 and have a 5 bar pressure rating. This means they have excellent protection against dust ingress and are waterproof even up to shallow submersion. As such, they are suitable for use in harsh environments and even some open air applications.

Accessories
Skintop ST cable glands can be used with corresponding PG sized nylon locknuts.

• 444-2688 is a Skintop Locknut, grey, PG7, IP68
• 444-2694 is a Skintop Locknut, grey, PG9, IP68
• 444-2717 is a Skintop Locknut, grey, PG11, IP68
• 444-2723 is a Skintop Locknut, grey, PG13.5, IP68
• 444-2739 is a Skintop Locknut, grey, PG16, IP68
• 444-2745 is a Skintop Locknut, grey, PG21, IP68
• 444-2751 is a Skintop Locknut, grey, PG29, IP68
• 444-2830 is a Skintop Locknut, black, PG7, IP68
• 444-2846 is a Skintop Locknut, black, PG9, IP68
• 444-2852 is a Skintop Locknut, black, PG11, IP68
• 444-2874 is a Skintop Locknut, black, PG13.5, IP68
• 444-2880 is a Skintop Locknut, black, PG16, IP68
• 444-2896 is a Skintop Locknut, black, PG21, IP68
• 444-2903 is a Skintop Locknut, black, PG29, IP68

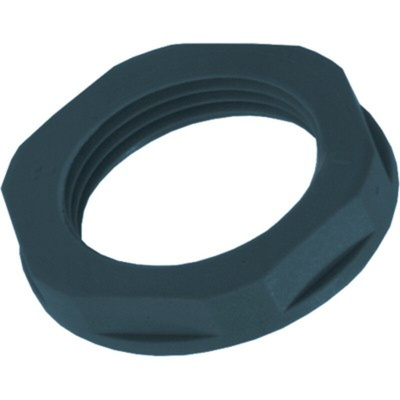

Supplied with

Lock nut

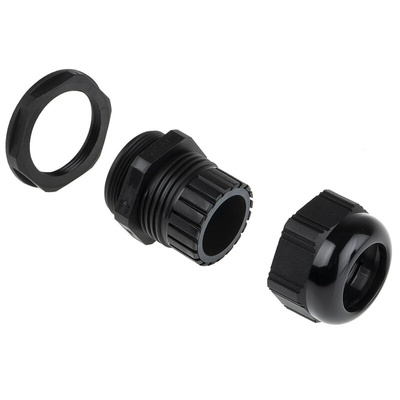

LAPP SKINTOP Series Cable Gland, Polyamide, Locknut Included - 53015260+53019260

This weatherproof cable gland by LAPP, designed for cable diametres ranging from 14mm to 25mm. With IP68 rating, polyamide construction, and a PG29 thread size, this cable gland is ideal for industrial use across automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Polyamide construction provides durability and resistance to various environmental factors
• PG29 thread size ensures a secure connection for cables within the specified range
• Designed to accommodate cable diametres between 14mm and 25mm, offering versatility in applications
• IP68 rating guarantees protection against dust and water ingress, suitable for demanding industrial environments
• Equipped with a locknut for added security and stability in cable installations
• Withstands a wide temperature range from -20°C to +80°C, making it suitable for varying operating conditions

Applications

• Suitable for use in manufacturing machines, equipment, control technology, and automation technology.
• Ideal for electronics technology and manufacturing robots due to its functional safety features.

Can it withstand extreme temperatures?

This cable gland is designed to operate within a temperature range of -20°C to +80°C, making it suitable for varying environmental conditions.

Is it suitable for industrial applications?

Yes, this cable gland is specifically designed for industrial use across automation, electronics, electrical, and mechanical industries.

Will it provide a secure connection for cables?

The PG29 thread size ensures a secure and stable connection for cables within the 14mm to 25mm diametre range.

Can it resist dust and water ingress?

With an IP68 rating, this cable gland guarantees protection against dust and water ingress, making it suitable for demanding environments.

Does it come with a locknut?

Yes, this cable gland is equipped with a locknut for added security and stability during cable installations.
