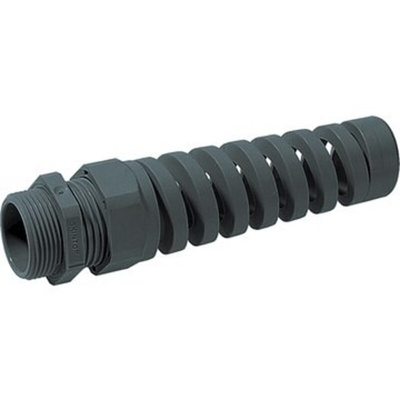

53015810+53019210, Lapp SKINTOP Series Black Polyamide Cable Gland, PG9 Thread, 3.5mm Min, 8mm Max, IP68, Кабельный ввод

LAPP Cable Gland, Chemical Resistant, With Counter Nut - SKINTOP Series - 53015810+53019210

This multifunctional cable gland from LAPP protects wiring connected to moving machine parts. It comes with strain relief to minimise cable degradation and includes additional protections against straining, bending and kinking. This further reduces the risk of wear and tear in demanding industrial applications. It also makes this a practical option for use with cabled handheld devices as it helps avoid damage caused by tensile stress.

Features & Benefits

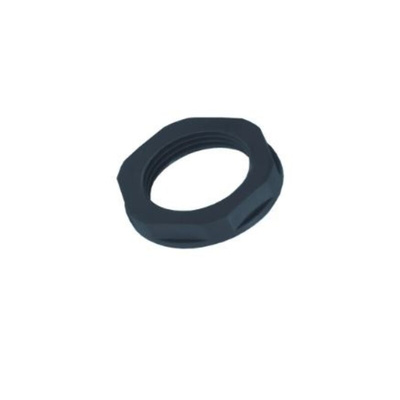

• GFR counter-nut included for mechanical strength when locking into unthreaded boreholes
• Wide clamping range to fit various cable sizes
• Simple screw-on mechanism reduces time spent installing
• IP68 rating means it's dustproof and waterproof when submerged in up to 1m of water

Applications

• Robotics systems
• Robotic machinery
• Light and sound distribution

What's the operating temperature range of this cable gland?

This product can withstand temperatures between -20°C and +80°C, so you can be assured of reliable performance in harsh industrial environments.

Datasheet

Cable Gland Selection Chart

Catalogue - LAPP Main Catalogue
