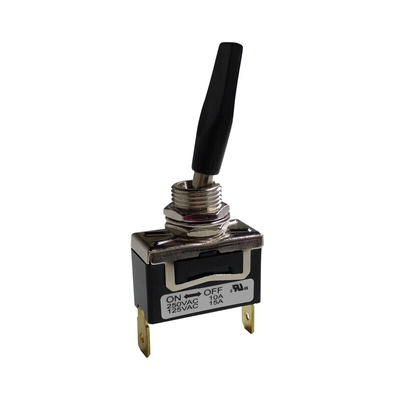

RS PRO Toggle Switch, PCB Mount, On-Off, SPST, Solder Terminal

RS PRO SPST 10A Toggle Switches

Introducing a range of SPST toggle switches from RS PRO. These high-quality toggle switches offer a single pole/single throw contact configuration, meaning there is one input terminal, one output terminal, and a toggle switch made from metal or plastic. 10A contact current ratings with various switch operations are available all with an operating temperature of -20°C to +55°C. RS PRO SPST toggle switches are designed with screw or solder tab termination for PCB applications.

Why would you need an SPST type toggle switch?

SPST toggles are commonly used as a simple ON-OFF switch which basically breaks the circuit connection between the terminals. You can control a simple bulb or LED within a circuit or integrate these toggles switches into a DIY control board design.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto the circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Plastic
• Bushing: Brass with nickel plating
• Base: Phenolic resin molding compound, black
• Spring: Steel wire
• Contact: Silver alloy
• Housing: Iron, nickel-plated
• Terminals: Bronze with nickel-plated
• Hardware: Nut (Iron, nickel-plated), Washer (Steel, nickel-plated), Screw (Iron, nickel plated)
• Label: Mist silver polyester film

Features and Benefits

• 10A @ 250VAC, 15A @ 125VAC
• Power toggle switch
• Single pole double throw contact - on-off action
• IP40 front panel protection
• Plastic actuator
• Operating temperature -20°C to +55°C
• UL & CUL approved

Switch Operations

• On-Off, Metal Actuator, Screw Termination; RS stock no: 206-6971
• On-Off, Metal Actuator, Solder Termination; RS stock no: 206-6972
• On-Off, Plastic Actuator, Solder Termination; RS stock no: 206-6974

Applications

Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling

RS PRO Datasheet
