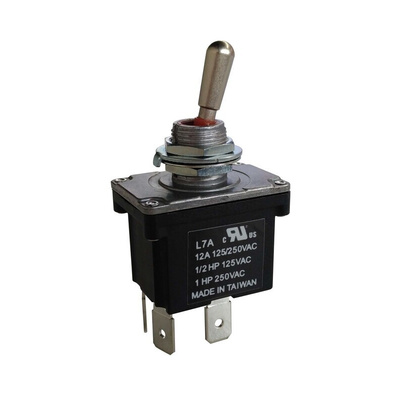

RS PRO Toggle Switch, Panel Mount, On-Off, 1 CO, Tab Terminal

RS PRO DPST Toggle Switches

Introducing a range of DPST toggle switches from RS PRO. These high-quality toggle switches offer a double pole single throw contact configuration that controls two circuits at the same time both ON of OFF. 12A contact current ratings are available with an operating temperature of -30°C to +85°C. RS PRO DPST toggle switches are designed with screw terminals or solder tab termination for PCB applications.

Why would you need a DPST type toggle switch?

DPST toggles are commonly used to control mains electricity by isolating live and neutral connections in ac/dc applications such as control motors.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass
• Bushing: Aluminium die-casting alloy
• O ring: Silicone gasket
• Contact: Silver alloy
• Body: Nylon 66
• Terminals: Brass with tin plating
• Hardware: Steel with trivalent zinc plating

Features and Benefits

• Sealed electrical toggle switch
• Double pole single throw contact
• On-Off
• IP40/ IP68 front panel protection
• Brass actuator
• Operating temperature -30°C to +85°C
• UL & CUL & ENEC15 approved

Applications

Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling
