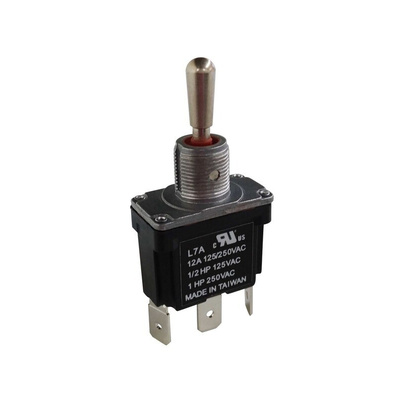

RS PRO Toggle Switch, PCB Mount, On-Off-(On), SPDT, Solder Terminal, 125V ac

RS PRO SPDT 12A Toggle Switches

Introducing a range of SPDT toggle switches from RS PRO. These high-quality toggle switches offer a single pole double throw contact configuration, meaning one input terminal and two output terminals with ON-OFF-ON or Momentary-Off-Momentary switch operations. 12A contact current ratings are available with an operating temperature of -30°C to +85°C. RS PRO SPDT toggle switches are designed with solder tab termination for PCB applications.

Why would you need an SPDT type toggle switch?

SPDT toggles are commonly used as a simple on-off switch or a changeover switch in a circuit. The on-off-on switching operation means they can be configured to connect a circuit to different paths for example; a circuit that has a light source and a motor can be connected to the outputs and activated with a flip of the toggle switch which controls the two output loads.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto the circuit board as well as for unused units, it is recommended to keep them within a sealed bag.

Material Characteristics

• Actuator: Brass
• Bushing: Aluminium die-casting alloy
• Contact rating: 12A @ 125/250VAC, 1/2 HP 125VAC, 1HP 250VAC
• O ring: Silicone gasket
• Contact: Silver alloy
• Body: Nylon 66
• Terminals: Brass with tin plating
• Hardware: Steel with trivalent zinc plating

Features and Benefits

• Sealed electrical toggle switch
• single pole double throw contact
• IP68 front panel protection
• Brass actuator
• Operating temperature -30°C to +85°C
• UL & CUL & ENEC15 approved

12A Switch Operations

• Momentary-Off-Momentary; RS stock no: 206-6980
• On-None-Off; RS stock no: 206-6981

Applications

Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling

RS PRO Datasheet
