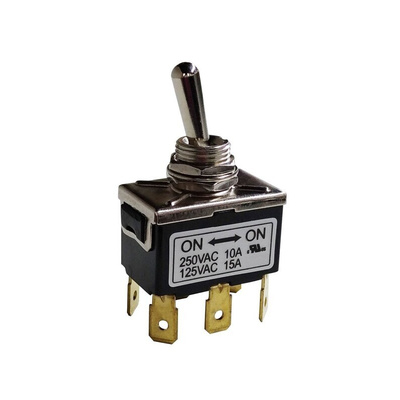

RS PRO Toggle Switch, PCB Mount, On-On, DPDT, Solder Terminal

RS PRO DPDT Toggle Switches

Introducing a range of DPDT toggle switches from RS PRO. These high-quality toggle switches offer a double pole double throw contact configuration that has two inputs and four outputs, 10A or 12A contact current ratings, and an operating temperature of -30°C to +85°C. RS PRO DPDT toggle switches are designed with screw or solder tab termination for PCB applications.

Why would you need a DPDT type toggle switch?

DPDT toggles are commonly used to control electric motors and electric linear actuators for example; giving you the capacity to reverse the polarity in the motor so it rotates in two different directions.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass
• Bushing: Aluminium die-casting alloy
• O ring: Silicone gasket
• Contact: Silver alloy
• Body: Nylon 66
• Terminals: Brass with tin plating
• Hardware: Steel with trivalent zinc plating

Features and Benefits

• Sealed electrical toggle switch
• Double pole double throw contact
• IP40/ IP68 front panel protection
• Brass actuator
• Operating temperature -30°C to +85°C
• UL & CUL & ENEC15 approved

10A Switch Operations

• On-On; RS stock no: 206-6982
• On-On; RS stock no: 206-6983
• On-Off-On; RS stock no: 206-6984
• On-Off-On; RS stock no: 206-6985
• (On)-Off-(On); RS stock no: 206-6986
• (On)-Off-(On); RS stock no: 206-6987
• (On)-On; RS stock no: 206-6988
• (On)-On; RS stock no: 206-6990
• (On)-Off-On; RS stock no: 206-6991

12A Switch Operations

• Momentary-Off-Momentary; RS stock no: 206-6977
• On-None-(On); RS stock no: 206-6975
• On-Off-On; RS stock no: 206-6976
• On-Off-On; RS stock no: 206-6978

Applications

Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling
