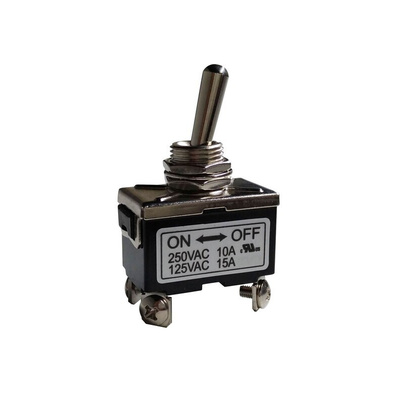

RS PRO Toggle Switch, Panel Mount, On-Off, 1 CO, Screw Terminal

RS PRO DPST 10A Toggle Switches

Introducing a range of DPST toggle switches from RS PRO. These high-quality toggle switches offer a double pole single throw contact configuration that controls two circuits at the same time both ON of OFF. 10A contact current ratings are available with an operating temperature of -20°C to +55°C. RS PRO DPST toggle switches are designed with screw terminals or solder tab termination for PCB applications.

Why would you need a DPST type toggle switch?

DPST toggles are commonly used to control mains electricity by isolating live and neutral connections in ac/dc applications such as control motors.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass with nickel plating
• Bushing: Brass with nickel plating
• Base: Phenolic resin molding compound, black
• Spring: Steel wire
• Contact: Silver alloy
• Housing: Iron, nickel plated
• Terminals: Bronze with nickel plated
• Hardware: Nut (Iron, nickel plated), Washer (Steel, nickel plated) Screw (Iron, nickel plated)
• Label: Mist silver polyester film

Features and Benefits

• Power toggle switch
• 10A @ 250VAC, 15A @ 125VAC
• Double pole single throw contact
• IP40/ IP68 front panel protection
• Operating temperature -20°C to +55°C
• UL & CUL approved

10A Switch Operations

On-Off; RS stock no: 206-6992
On-Off; RS stock no: 206-6993

Applications

Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling

RS PRO Datasheet
