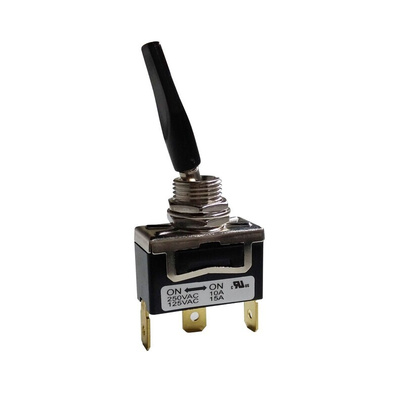

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Solder Terminal

RS PRO SPDT 10A Toggle Switches

Introducing a range of SPDT toggle switches from RS PRO. These high-quality toggle switches offer a single pole double throw contact configuration, meaning one input terminal and two output terminals. A selection of 10A contact current ratings with various switch operations is available all with an operating temperature of -20°C to +55°C. RS PRO SPDT toggle switches are designed with screw or solder tab termination for PCB applications.

Why would you need an SPDT type toggle switch?

SPDT toggles are commonly used as a simple on-off switch or a changeover switch in a circuit. The on-off-on switching operation means they can be configured to connect a circuit to different paths for example; a circuit that has a light source and a motor can be connected to the outputs and activated with a flip of the toggle switch which controls the two output loads.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Plastic
• Bushing: Brass with nickel plating
• Base: Phenolic resin molding compound, black
• Spring: Steel wire
• Contact: Silver alloy
• Housing: Iron, nickel-plated
• Terminals: Bronze with nickel-plated
• Hardware: Nut (Iron, nickel-plated), Washer (Steel, nickel-plated), Screw (Iron, nickel
plated)
• Label: Mist silver polyester film

Features and Benefits

• 10A @ 250VAC, 15A @ 125VAC
• Power toggle switch
• Single pole double throw contact
• IP40 front panel protection
Plastic actuator
• Operating temperature -20°C to +55°C
• UL & CUL approved

10A Switch Operations

• On-On
RS stock no: 206-6994
• On-On
RS stock no: 206-6996
• On-On
RS stock no: 206-6997
• On-Off-On
RS stock no: 206-6998
• On-Off-On
RS stock no: 206-6999
• On-Off-On
RS stock no: 206-7000
• (On)-Off-(On)
RS stock no: 206-7001
• (On)-Off-(On)
RS stock no: 206-7002
• (On)-On
RS stock no: 206-7003
• (On)-On
RS stock no: 206-7004
• (On)-On
RS stock no: 206-7006
• (On)-Off-On
RS stock no: 206-7007

Applications

Telecommunications
Aerospace
Automotive
Instrumentation control
Industrial Control Solutions
Material Handling
