RS PRO Taper Bore Gauge, Steel, 1 piece

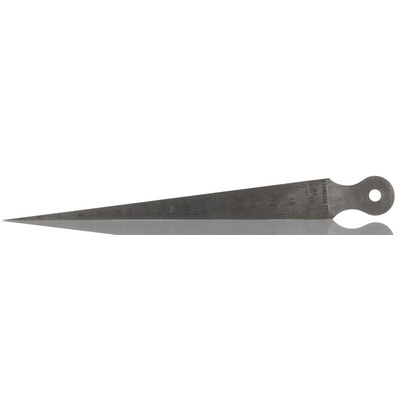

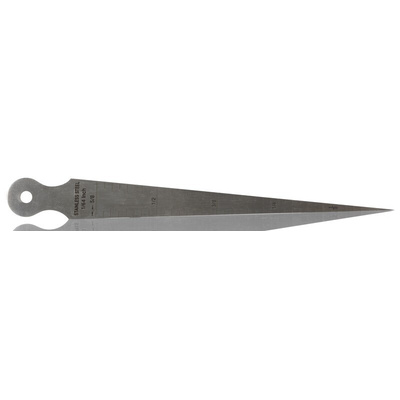

RS PRO Stainless Steel Taper Bore Gauge

Introducing the RS PRO taper bore gauge. A very useful tool to have in your tool kit when the time comes to measuring cylindrical bores or gauging slot diameters. This high-quality hand tool is made from stainless steel with a polished finish, supports imperial and metric measurements, and is extremely lightweight.

Also known as;

Bore gauge
Cylinder bore gauge

How do you use a taper gauge?

A taper gauge is designed for measuring grooves, hole diameters, or gaps between two opposing sides. The actual measurements can be read via the imperial or metric graduation on the front and reverse side taper gauge. The device is easy to use, simply insert into a groove for example and slide the gauge forward until it comes to a dead stop, this will reveal the true measurement diameter value.

Features and Benefits

• Stainless steel
• Imperial and metric
• Lightweight

Range Specifications

• Metric: 1 to 16 mm in 0.1 mm increments
• Imperial: 1/64 in. to 5/8 in. 1/64 in increments

Mechanical Specifications

• Width: 55 mm
• Height: 1 mm
• Length: 220 mm
• Weight: 10 g

Applications

Automotive
Machining
Fabrication
Workshops
Manufacturing
