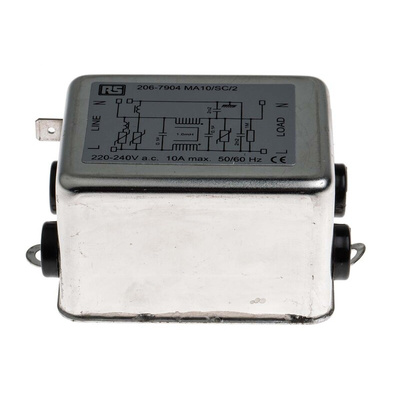

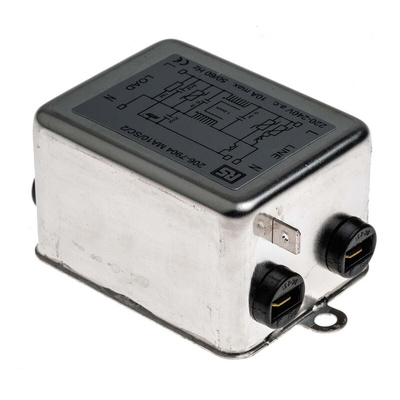

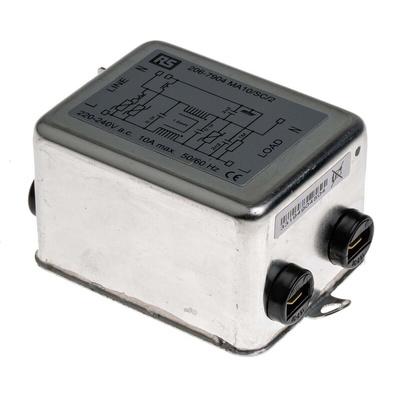

RS PRO 10A 240 V ac 50/60Hz, Chassis Mount RFI Filter, Fast-On, Фильтр

RS PRO 10 A 240 V DC 50/60 Hz, Chassis Mount RFI Filter, Fast-On

This RFI filter is a compact component that can be connected to electrical devices to prevent external radio frequencies (RFI) from impairing performance. It’s part of our tried and tested RS PRO range.

This self-contained RFI filter significantly reduces the amount of conducted frequencies between your equipment and the connecting power line. RFI can cause permanent damage to electronic circuits, so filtering them out is crucial to prolong the working life of your devices. The filter also protects against transient voltage spikes, which can result from power outages, short circuits and nearby lightning strikes. The filter has a handy push-on chassis mount, so it can be easily connected to your equipment’s circuit boards.

Preventing interference ensures equipment runs safely and reliably, even when exposed to unpredictable electromagnetic environments. This RFI filter is a great way to ensure that sensitive electronics, such as medical and industrial equipment, are well protected.

Features and Benefits

• Operating frequency of 50/60 Hz (Hertz)
• Maximum voltage rating of 240 V DC
• Maximum current rating of 10 A (amperes)
• Current leakage of >
0.3 mA (milliamperes)
• Three stages
• Fast-on termination style
• Chassis mount type
• 85 mm (length) x 52 mm (depth) x 40 mm (height)
• Operating temperature range of -25°C to +85°C
