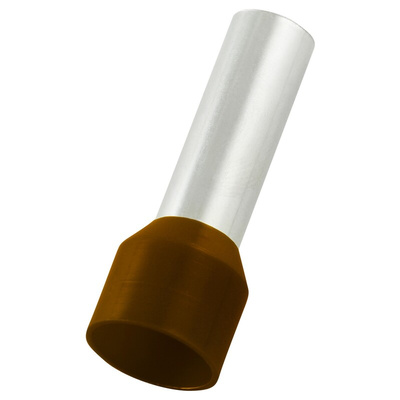

RS PRO Insulated Crimp Bootlace Ferrule, 22mm Pin Length, 7.3mm Pin Diameter, 25mm² Wire Size, Brown

RS PRO Insulated Bootlace Ferrules

Looking for bootlace ferrules to complete a professional install, then consider the RS PRO range of crimp bootlace ferrules designed for clean termination of cable wire conductors to ensure the best possible electrical connection. RS PRO crimp bootlace ferrules are colour coded, available in multiple sizes and a most for any electrical engineer or DIY enthusiasts who pride themselves on completing a job to a high professional standard.

What Is a Bootlace Ferrule?

A bootlace ferrule is a metal tube or ferrule with a moulded colour-coded insulating collar made from nylon. The ferrule is slipped over the end of a multi-stranded cable wire, crimped, and then inserted into a screw or spring clamp connection.

Why would you use bootlace ferrules?

When the end of a multi-stranded wire is stripped and placed directly under a screw terminal the strands of the wire will naturally fan out under the pressure of the screw. Some strands will go astray. This reduces the quality of the electrical connection and can also result in electrical shorts. When a bootlace ferrule is used, the insulated funnel with its flared design captures all the strands. These strands are then crimped together in the ferrule tube. The crimped ferrule is then inserted into the terminal to create an electrical connection.

Features and Benefits

• Excellent electrical connection
• Reduces short circuits
• Colour coded collar for easy ferrule size identification
• Nylon insulated collar for reduced leakage, creepage and gas intrusion
• Tin plated copper tube for excellent conductivity
• Crimped terminal can be repeatedly inserted and removed without degrading the end of the wire
• Available with a single or dual entry

Suitable RS PRO Crimping Tools

For ferrules with a wire size range of;

• 0.5 to 6 mm² use crimping tool RS stock no: 683-1605
• 10 to 25 mm² use crimping tool RS stock no: 683-1614
• 0.5 to 16 mm² use crimping pliers RS stock no: 464-482
• 35 or 50 mm² use crimping tool RS stock no: 683-1617

Applications

Consumer units
Circuit breakers
Electrical control panels
Terminal blocks

Why would you choose RS PRO for Bootlace Ferrules?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
