6AGC082153, ABB 3 Phase 22kW EV Charging Point, 320 → 480V ac O/P, 32A O/PType 2

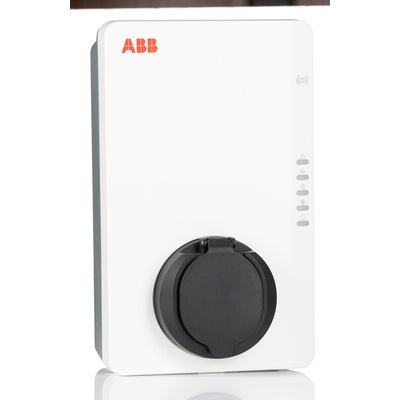

ABB TAC-W22T-R-C-0 Terra AC Wallbox

The TAC-W22T-R-C-0 Terra AC Wallbox is a 3-phase 22kW state-of-the-art electric vehicle (EV) charging point designed for commercial and business use. It offers a high-performance and user friendly solution for customers looking to enhance their EV charging experience. The TAC-W22T-R-C-0 model is equipped with RFID and 4G so is well suited for advanced applications where added security is required. The Terra AC charging point also features a built-in energy meter that can easily be integrated into advanced smart building energy systems.

Key Features

• Complying with IEC Standards


• Mode 3 charging, level 2

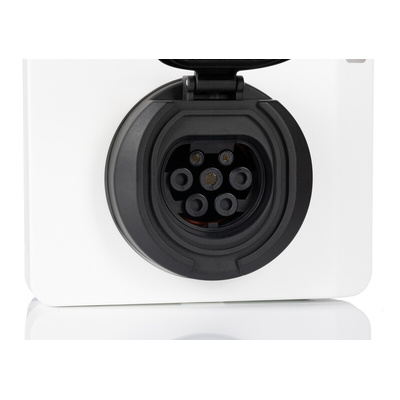

• Single type 2 front socket without shutter


• Communication interface - Wi-Fi, Ethernet, Bluetooth, Modbus, 4G


• Authentication - RFID, App, Free Vending


• IP54

Key Benefits

• High-quality space saving design which is easy to install. Compact and stylish it blends seamlessly into any environment, while providing high charging speeds and reliability.


• Safe and Reliable: The Wallbox is built with robust safety features and includes current limiting protection which prevents nuisance tripping.


• User-friendly: The Terra AC Wallbox is equipped with an intuitive user interface and a mobile app, making it easy for users to start and monitor their charging sessions. 5 powerful status indication LEDs clearly showing power/connectivity/authorization/charging/error
