RS PRO Blue Female Banana Socket, 4 mm Connector, Solder Termination, 20A, 1000V

RS PRO 4 mm Banana Socket - Female

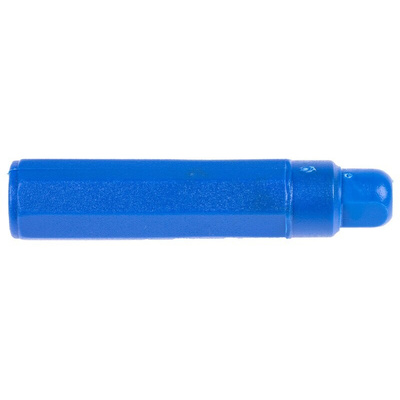

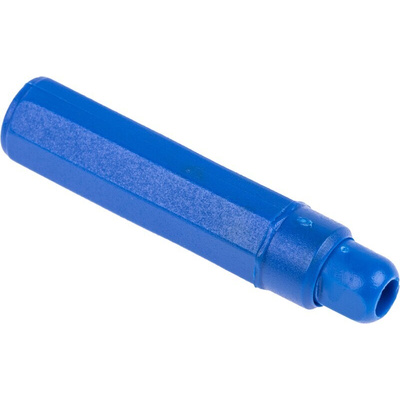

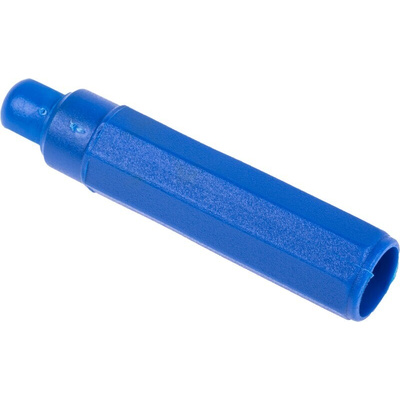

Looking to make your own cable connector leads, then consider the RS PRO 4 mm female banana socket. This cable socket is the ideal solution for making test leads to your specification. Upon inspection, the socket connector offers a fully shrouded body, resilient plastic and nickel plated brass contact. Compatible with cables with a 4 mm dia. and is suitable for any standard 4 mm shrouded or non-shrouded banana plugs.

Why would you need banana sockets?

There are many variations of banana socket connectors so it’s important to have a variety of cable leads of various lengths especially if you frequently use multi-meters, voltage meters or other forms of testing equipment. The most efficient way is to make your own, that way you can set up your workstation or bench to be more productive.

How do you make a banana socket test lead?

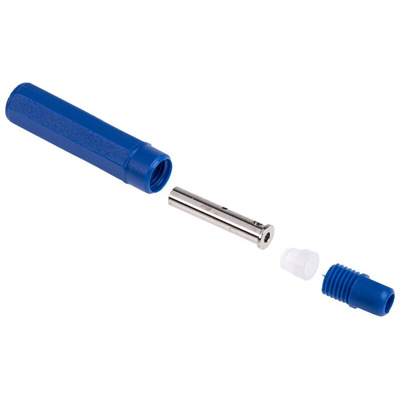

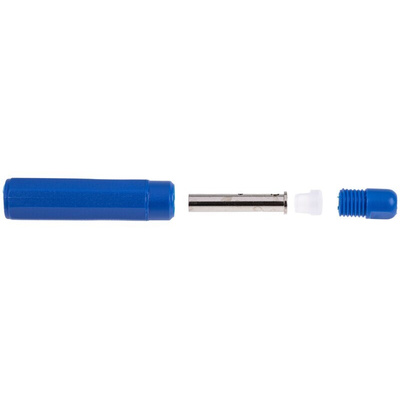

Terminating the socket connector is very straight forward, the centre contact has an aperture for the cable wire to be soldered. Once soldered assemble all the socket elements back together now your test lead is ready for use.

4 mm banana socket options

• Black - RS stock no: 207-0873
• Blue - RS stock no: 207-0874
• Green - RS stock no: 207-0875
• Red - RS stock no: 207-0876
• Yellow - RS stock no: 207-0877

Features and Benefits

• 4 mm female banana socket
• Nickel-plated brass contact
• Fully Shrouded
• Voltage rating: 1000V CAT III
• Current rating: 20A
• Available in multiple colours

Application

Electrical and Electronic servicing
Automotive
Maintenance

RS PRO Datasheet
