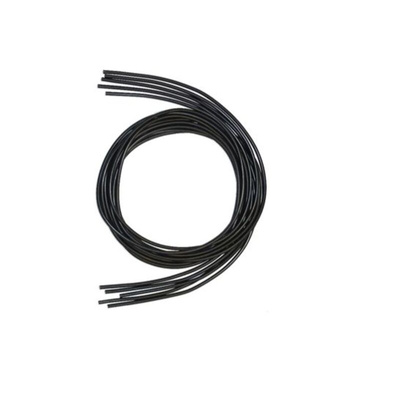

RS PRO Test Lead Wire 1 mm² CSA 1000 V, 20 A, Black Silicone, 250 Strands ,Length 1200mm

RS PRO Test Lead Wire - Black

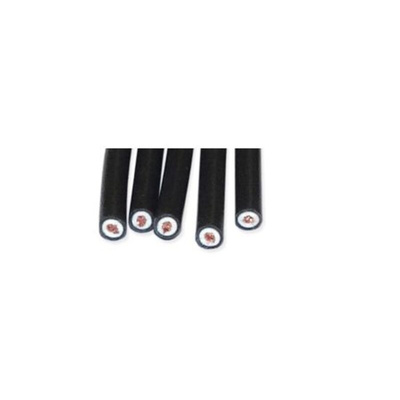

Introducing the RS PRO test lead cable. A high-quality double insulated silicone cable, with the inner skin being of a contrasting colour which acts as a wear/damage indicator. The silicone insulation is excellent in high temperatures, even withstanding contact with a soldering iron, and can be draped over a hot manifold without sustaining damage.

Why would use this test wire cable?

The RS PRO test lead wire is ideal for creating your own test leads. They are flexible, can be cut to the desired length, and are compatible with the RS PRO 4 mm banana plugs and banana sockets.

Features and Benefits

• Double insulation
• Silicone cable
• Inner skin
• Conductor: 250 strands of very fine copper
• Flexible
• Ideal for use with high currents
• 3.55mm OD

RS PRO Test Lead Wire Options

• Black Wire - RS stock no: 207-0881
• Red Wire - RS stock no: 207-0882

Compatible Banana Connectors

Banana Plugs
• Black - RS stock no: 207-0868
• Blue - RS stock no: 207-0869
• Green - RS stock no: 207-0870
• Red - RS stock no: 207-0871
• Yellow - RS stock no: 207-0872

Banana Socket
• Black - RS stock no: 207-0873
• Blue - RS stock no: 207-0874
• Green - RS stock no: 207-0875
• Red - RS stock no: 207-0876
• Yellow - RS stock no: 207-0877

Right Angled Banana Plugs
• 4 mm, Blue - RS stock no: 207-0878
• 4 mm, Green - RS stock no: 207-0879
• 4 mm, Yellow - RS stock no: 207-0880

Applications

Electrical and Electronic Servicing
Automotive
Maintenance
