6PA44-4, Honeywell Limit Switch Operating Head for Use with 14CE Series

Metal Enclosed (14CE) IP65 Plug On Connector Limit Switches

Zinc bodied (14CE) IP65 limit switche
Integral 4-pin M12 bottom facing connector suitable for Brad Harrison (micro change), Binder, Lumberg and other connectors giving fast replacement/installation
Particularly suitable for areas where plant machine down time is a significant cost factor
Actuator available separately for the rotary switch.

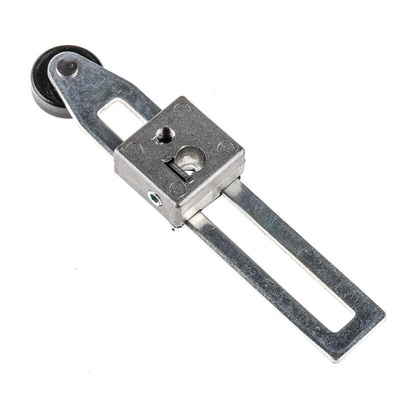

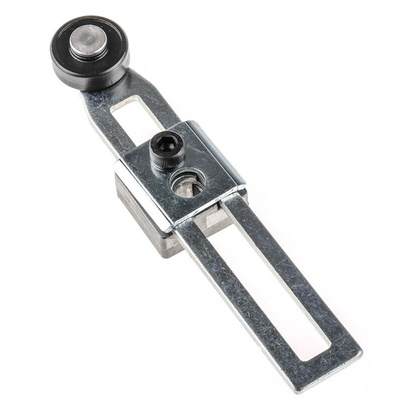

Honeywell Zinc-Bodied Limit Switch Roller Lever, For Use With 14 CE Series - 6PA44-4

Replace your worn-out roller lever with this hardwearing, zinc-bodied component from Honeywell. It's designed to be used with limit switches from Honeywell's 14CE series. This device is easy to steer and enables smooth functioning at pretravel, operating and overtravel points when the limit switch is activated. The lever returns to its neutral position once its action has been completed. It functions as a reliable rotation and contact mechanism for limit switches in industrial applications.

Features and Benefits

• Corrosion-resistant zinc body that's rated IP65 (ingress protection), so it's protected from dust and jets of water
• Compatible with a broad range of actuators in the 14 CE switch series
• Easy to install and maintain
• Equipped with a spring return function that returns the lever smoothly to its original position

Application Information

• Plant machinery
• Manufacturing equipment
• Heavy-duty packaging applications

How do I install this Honeywell roller lever onto a limit switch?

The roller’s turning mechanism functions via an axis secured onto the actuator. You can fix this by pinning it to the 4-pin connector via a standard M12 thread. This keeps it securely in place and also allows for convenient dismounting.

Approvals

UL, CSA.
