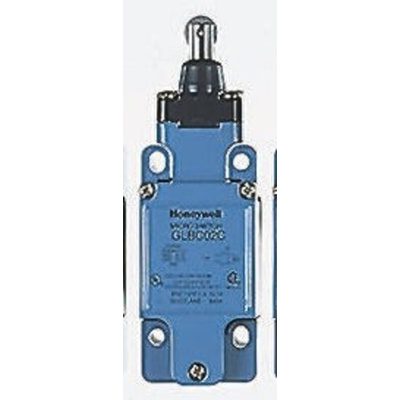

GLBC02C, Honeywell GLB Series Plunger Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 10A Max

Honeywell Plunger Limit Switch, NO/NC, 10A - GLB Series - GLBC02C

This limit switch from Honeywell is used to make or break a connection in an electrical circuit. It consists of an actuator head that triggers the circuit function, a switch body that opens or closes the circuit and a terminal used to wire the switch. The actuator on the switch is a plunger-type, so it's ideal for short, controlled machine movements. The three-component modular design of this product means it's simple to install and maintain as needed.

Features & Benefits

• Snap-action normally closed (NC) contacts for rapid switching action
• Wide operating temperature range of -40°C to +85°C for use in harsh industrial environments
• Galvanically isolated single pole double throw (SPDT) contacts to prevent signal interference
• Robust mechanical lifespan of up to 15 million operations for long-lasting use
• Durable die-cast zinc housing for resistance to impact and corrosion

Applications

• Front-loaders
• Mobile cranes
• Aerial lifts
• Railroad signalling equipment
• Automotive assembly lines

Can I use this limit switch in damp or dusty environments?

Yes. This limit switch has an IP67 (ingress protection) rating, so it's protected against dust and submersion in up to 1m of water for 30 minutes.

Approvals

UL; CSA

Approvals

UL/ UL listed for Canada

Datasheet - GLBC02C
