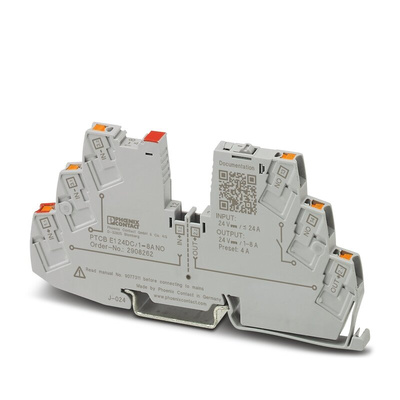

2908262, Phoenix Contact Electronic Device Circuit Breaker Electronic Circuit breaker 8A 24V PTCB, 1 channels , DIN Rail Mount

Phoenix Contact Electronic Circuit Breaker, 300A Short-Circuit Switching Capacity, 0 to 30V DC Operating Voltage - PTCB E1 24DC/1-8A NO - 2908262

Choose this electronic circuit breaker from Phoenix Contact when you need an adaptable safety device. It trips when either an overvoltage or short circuit is detected to safeguard downstream electrical equipment.
The unit has current values that can be set between 1 and 8A for convenience and flexibility. Resetting is easy – just press and hold the button on the front of the device. An LED makes it easy to monitor circuits, with the light turning yellow when the current reaches 80% of its set value. It turns red when the current or voltage is out of the safe range.
This circuit breaker has push-in terminals and clips onto standard DIN rails for easy installation. It can be attached to other terminal blocks using a bridge to save wiring time. Use it to protect components such as relays, motors and actuators in automated systems.

Features & Benefits

• Integrated failsafe means there's no need for a backup fuse
• Compact width of 6.2mm to save you cabinet space
• UL94 V) rating assures you it's flame-retardant
