3212064, Phoenix Contact PTPOWER 35 Series Grey Component Terminal Block, 35mm², Single-Level, Push In Termination, ATEX, IECEx

Phoenix Contact Component Terminal Block, Push-In Terminals, 125A Current Rating - PTPOWER 35 - 3212064

Make it easy to connect large conductors with this terminal block from Phoenix Contact. With a current rating of 125A and voltage rating of 1kV, it's designed for powerful applications.

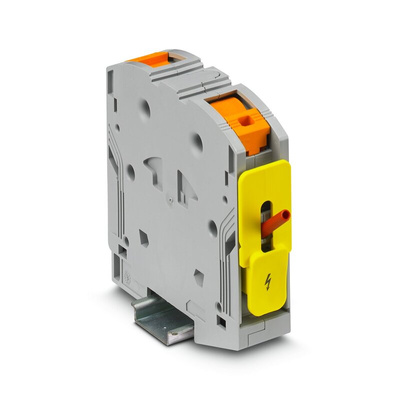

The unit has PowerTurn connectors, so you can simply push in the wires and clamp them securely using a lever for a quick installation without the need for special tools. Steel springs keep your connections in place and ensure they're resistant to vibrations. As the terminals are positioned on the front of the block, wiring in tight spaces is easier.
The modular design of this unit makes it easy to adapt and expand your system as needed. It's compatible with plug-in bridges to minimise wiring when you're joining multiple blocks together. There's a space for labelling next to the connectors, making it straightforward to identify blocks in complex industrial automation, control and power distribution systems.

Features & Benefits

• Accepts wire sizes between 12 and 2AWG for versatility
• Wide operating temperature range between -60°C and +105°C for safe operation in demanding environments
• Durable PA housing offers electrical insulation that's flame-retardant for safe and reliable circuits
