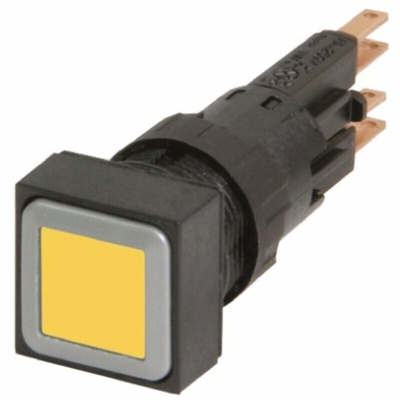

086343 Q25D-GE, Eaton RMQ16 Series Yellow Momentary Push Button, 16mm Cutout, IP65, Нажимная кнопка

Momentary Action Pushbutton Switch

Available in 18mm and 25mm square bezel sizes

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.

Datasheet - Eaton Q25D-GE

Datasheet - Eaton RMQ-16 Series
