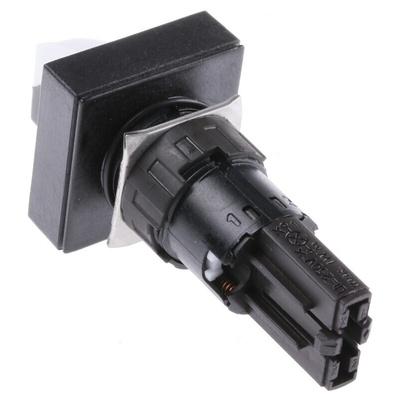

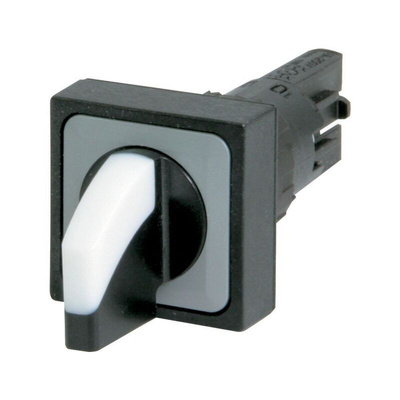

072373 Q25WK3R, Eaton 3 Position Selector Switch Head, 16mm Cutout, White Handle

Eaton Selector Switch Head, Front Mounting, 25mm Bezel - 072373 Q25WK3R

Turn to this selector switch head from Eaton when you want to toggle between settings in a jiffy. It's an ideal option for factory automation and lighting control tasks, as you can set it to three different positions. This gives you clear control over different modes, to make changing speed or function a breeze. Once you've chosen your desired setting, the maintained actuator ensures operations continue until you decide otherwise. An anti-rotation tab prevents unintended changes to your settings. The square bezel slots neatly into a 16mm hole, so doesn't take up much panel space.

Features & Benefits

• Ergonomic design includes thumb grip for comfortable operation
• Reliable performance in a temperature range between -25°C and +60°C
• IP65 rating means it's completely dust-tight and resists low-pressure water jets from all directions
• White marking clearly identifies the head position, for fast recognition

Does this switch head withstand heavy use?

This selector switch head handles heavy use up to 1,800 operations per hour. In the long term, it provides a mechanical lifespan of over one million operations.

What material is this head made from?

It's made from plastic that resists abrasion, impact and corrosion, so you can be sure of its long service life.

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.
