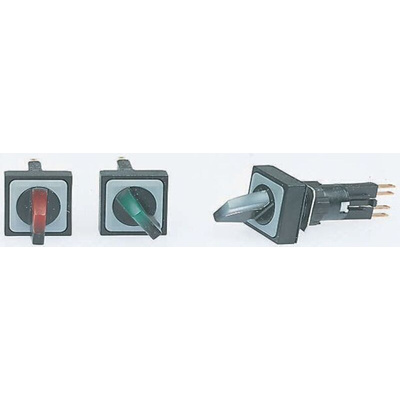

072362 Q25LWK3R-RT, Eaton 3 Position Selector Switch Head, 16mm Cutout, Red Handle

Illuminated Stay-put Action Selector Switch

Note

Wedge base lamp required: 6V, 12V and 24V. Available separately.

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.

Datasheet - Eaton Q25LWK3R-RT
