086450 Q18D-GN, Eaton RMQ16 Series Green Momentary Push Button, 16mm Cutout, IP65, Нажимная кнопка

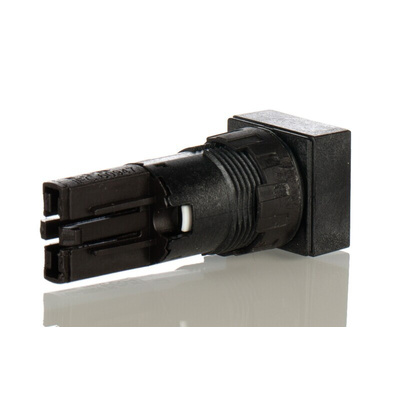

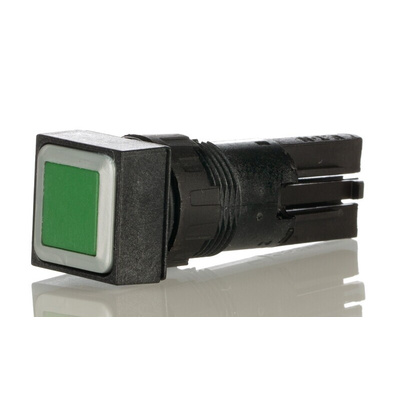

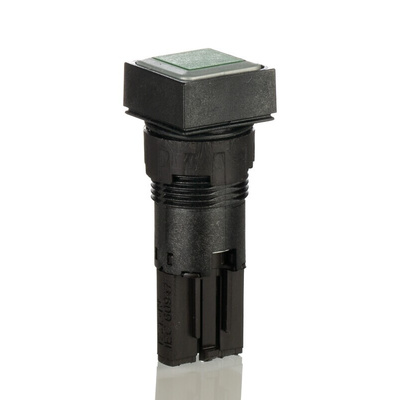

Eaton Push Button, Square, Green - RMQ16 Series - 086450 Q18D-GN

For reliable manual control over your machinery, opt for this square push button from Eaton. It's a momentary type, so equipment only operates when it's pressed, and it's coloured green to signify 'on' or 'start'. The button's body is made of sturdy plastic that offers impact resistance, making it ideal for use in tough working conditions. Thanks to a cutout diameter of 16mm and panel-mounting style, you can easily install it in busy control setups without specialist tools. An operating temperature range of -25°C to +60°C means you can depend on this button, even in tough industrial environments.

Features & Benefits

• Can withstand up to 40g of impact for high shock resistance
• Push-in terminal design means easy attachment to standard equipment
• Flat push button surface ensures it's protected from unintentional contact

Can I use this push button in damp environments?

This push button has an IP65 rating, meaning it's dust-proof and can resist low-pressure water jets, making it reliable in damp and contaminated environments.

For how long will this push button last?

A mechanical service life of 3,000,000 cycles means this component will deliver long-term performance.

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.

Datasheet - Eaton Q18D-GN

Datasheet - Eaton RMQ-16 Series

Installation Sheet - RMQ 16
