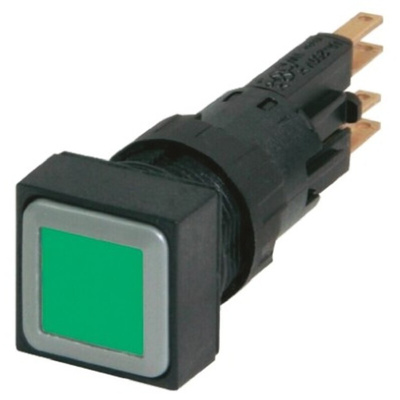

086176 Q18DR-GN, Eaton RMQ16 Series Green Maintained Push Button, 16mm Cutout, IP65, Нажимная кнопка

Eaton Push Button, With BlackPlastic Front Ring, Maintained Actuator Function - 086176 Q18DR-GN

Need a hands-on way of controlling industrial processes? With this green push button from Eaton, that power is at your fingertips. The handy device is a maintained actuation type, so lets you make or break an electrical circuit just by pushing on its square face. Its 16mm mounting diameter means it fits into a standard cutout, so slotting it into your panel is a breeze. As its IP65 rating indicates, this unit is dust-tight and resists low-pressure water jets from any direction. You'll find buttons like this in light networks, control panels and computer peripherals.

Features & Benefits

• Handles up to 1,800 operations per hour, so it's suitable for high-turnover applications
• Light weight of 7g won't strain your setup
• Operates reliably in a wide temperature range from -25°C to +60°C

What's the lifespan of this push button?

The mechanical lifespan of this unit is 3 million operations, so it'll be with you for the long haul.

Can I mount this button in an enclosure?

Yes – it's suitable for enclosed mounting as long as the internal temperature is between -25°C and +40°C.

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.
