086808 Q25D-WS, Eaton RMQ16 Series White Momentary Push Button, 16mm Cutout, IP65, Нажимная кнопка

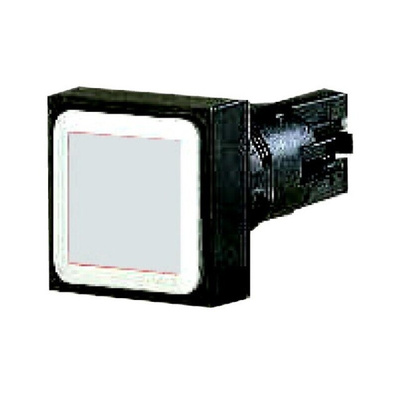

Eaton Push Button, Square, Non-Illuminated - RMQ16 Series - 086808 Q25D-WS

Make sure you have immediate stop-start control of your equipment with this square, non-illuminated push button from Eaton. Its robust plastic construction makes it resistant to corrosion and impact, so you can rely on it for long-term performance. Thanks to a wide operating temperature range of -25°C to +60°C, it's an ideal choice to install in harsh environments. An IP65 rating means it's protected from dust and able to withstand low-pressure water jets.

Features & Benefits

• Flat design minimises the risk of accidental actuation
• White push button colour makes it stand out on your control panel
• Compact cutout diameter of 16mm to take up minimal space in busy setups
• Momentary button means attached equipment only operates when the button is actuated, for safe working

How long will this push button last?

This push button has a mechanical operational lifespan of 3,000,000 cycles, so it provides long-term reliability.

How do I install this push button?

This unit can be installed simply with a screwdriver, thanks to its push-in terminal design, which provides vibration-proof attachment to your equipment.

Note

Eaton formerly known as Moeller

Eaton RMQ 16mm Range

A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.

Datasheet - Eaton Q25D-WS

Datasheet - Eaton RMQ-16 Series

Installation Sheet - RMQ 16
