8412 010100, Belden Screened 2 Core Microphone Cable, 0.52 mm² CSA, 6.65mm od, 30m, Black, Кабель

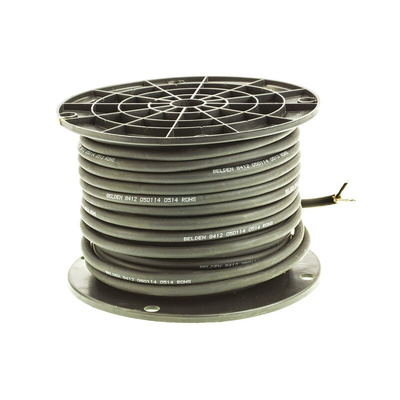

Belden 8412 Two-Conductor Low Impedance Braided-Screen Cable

For a high-quality, high-performance audio cable that effectively minimises electromagnetic interference try the Belden 8412 cable. This Belden microphone cable is used for connecting low-level microphones or musical instruments and is perfect for studio or live performances.

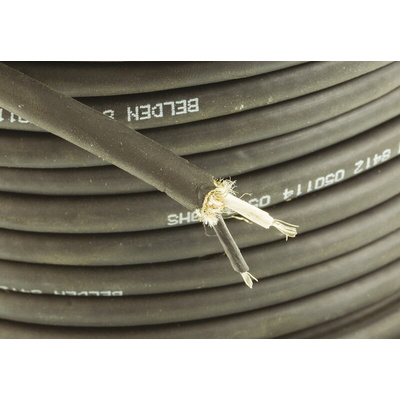

This cable features 2 high conductivity tinned copper 20AWG conductors. The outer jacket is comprised of EPDM (Ethylene Propylene Diene Monomer Rubber), which provides superb flexibility, durability and moisture resistance.

The maximum recommended current for this model is 4 Amps per conductor, at 25°C. This Belden 8412 cable also has a wide operating temperature range of -50°C to +90°C.

Features and Benefits:

• Tinned copper braid shield with 85% shield coverage
• Robust EPDM outer insulation
• Rugged and flexible, ensuring excellent longevity
• Dependable signal performance due to immunity from interference (EMI)
• Long flex-life

Standards:

RoHS

Belden is a globally trusted brand with over 100 years of experience in designing high-performance networking, connectivity and cabling solutions. Their products are tested to strict quality standards, making them a safe and long-lasting choice for any application.

Why is shielding used in audio cables?

A shield is a conductive layer which protects the core wires from electromagnetic interference, which can be caused by electrical devices nearby. EMI can disrupt signal transmission, so by using audio cables with shielding you can guard against unwanted noise or signal loss and ensure better sound quality.

Cable Selection Guide

8412 010100 Datasheet
