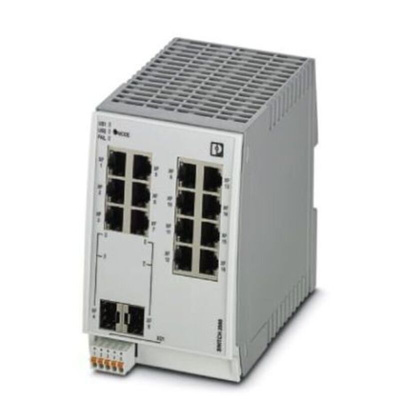

1006188, Phoenix Contact FL SWITCH Series DIN Rail Mount Ethernet Switch, 14 RJ45 Ports, 100Mbit/s Transmission, 24V dc

Phoenix Contact Ethernet Switch, 24V DC Supply Voltage, 460mA Current Consumption - FL SWITCH 2214-2SFX - 1006188

Looking for a reliable way to manage data on your LAN? Keep your information flowing with this Ethernet switch from Phoenix Contact. After linking one of its 14 RJ45 ports to your modem, you can connect other devices to your unit using the remaining terminals. This lets you grow your network and send data rapidly from one device to another.
Challenging environments are no problem for this unit, which shrugs off temperatures between -40°C to +70°C. And if you're wondering how your switch is performing, just take a peek at the LED indicators. Each Ethernet port has two lights, so you can keep track of speed and activity at a glance. Mounting is hassle-free, as the unit clips onto your DIN rail with one click.

• Compatible with PROFINET and Ethernet/IP networks for increased versatility
• Supports 10 and 100Mbps transfer rates for greater compatibility with connected devices
• IP20 rating for protection from touch by fingers and objects larger than 12mm
• Compact dimensions of 85 (W) x 130 (H) x 115mm (D) make this a space-saving unit

The Phoenix Contact bus coupler connect an Inline station to the INTERBUS remote bus. It provide the supply voltage for the connected analog module. It used F-SMA connector and has 500 kbps of transmission speed in the local bus.

Ambient temperature -25 °C to 55 °C
Degree of protection IP20

Datasheet - 1006188

Brochure - Industrial Ethernet

Instruction Sheet - 1006188

Line Drawing - 1006188

Manual - Installation and Startup
