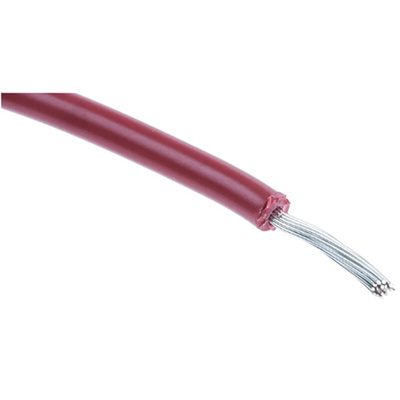

RS PRO Red 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 100m, PVC Insulation

RS PRO Hook Up Wire - UL1015

Our RS PRO range of hook up wires keeps on improving. We are pleased to introduce a new series of UL 1015 flexible hook-up wire perfect for internal wiring and electrical equipment. These 22 AWG copper conductor wires are supplied on a reel with red, blue or black insulated sheaths, and offered in 100 metre lengths.

Upon inspection the cables are solid, extremely robust, core strands are tinned copper and have a voltage rating of 600 V. The equipment wires are protected with insulation made from high-quality PVC ensuring the cables are reliable and meet the criteria for installation.

What is a hook-up wire?

Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low or high voltage applications. Copper strands are insulated and act as the conductor of electricity to power its target.

What is hook up wire used for?

These type of hook-up wires are frequently found within the everyday household and workplace appliances. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals.

Features and Benefits

• Voltage rating 600 V
• Rated Temperature -5°C to +105°C
• Core Strands: 7/0.25 mm
• Tinned copper conductor wire - 22 AWG (American Wire Gauge)
• Cross Sectional Area: 0.33 mm²
• Insulation: PVC
• Fire Resistant, Flame Retardant
• Supplied on 100 m reel
• UL & CSA Approved

RS PRO UL1015 Hook Up Wires Options – 22 AWG

• 100 Metre Reel, Black, RS stock no: 207-5285
• 100 Metre Reel, Red, RS stock no: 207-5287

Applications

Hook up wire can be used for a broad range of appliances that include;

• Electrical Equipment
• Electronics
• Motors & Transformers

Why would you choose RS PRO for Hook Up Wires?

Our extensive range ensures we have your ideal solution available. Browsing our offer has vastly improved making it simple to select your hook up wire of choice. Our products are supported with technical information and customer service we are sure you will appreciate.
