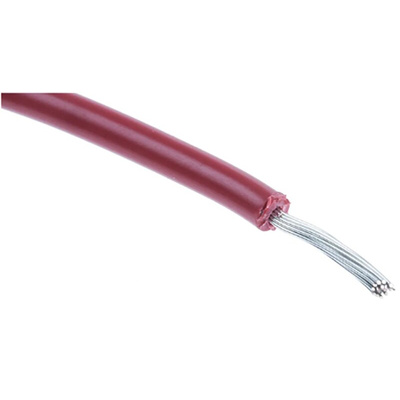

RS PRO Red 0.2 mm² Hook Up Wire, 24 AWG, 7/0.2 mm, 100m, PVC Insulation

RS PRO Hook Up Wire - UL1015

Our RS PRO range of hook up wires keeps on improving. We are pleased to introduce a new series of UL 1015 flexible hook-up wire perfect for internal wiring and electrical equipment. These 24 AWG copper conductor wires are supplied on a reel with red, green or black insulated sheaths, and offered in 100 metre lengths.

Upon inspection the cables are solid, extremely robust, core strands are tinned copper and have a voltage rating of 600 V. The equipment wires are protected with insulation made from high-quality PVC ensuring the cables are reliable and meet the criteria for installation.

What is a 24 AWG hook-up wire?

A 24 AWG hook up wire is primarily used for internal wiring applications. The inner core is very strong, flexible and equally as strong as single core conductors, so they have a long service life. They offer a larger diameter perfect for being pulled and routing during installation.

Features and Benefits

• Voltage rating 600 V
• Rated Temperature -5°C to +105°C
• Core Strands: 7/0.2 mm
• Tinned copper conductor wire - 24 AWG (American Wire Gauge)
• Cross Sectional Area: 0.2 mm²
• Insulation: PVC
• Fire Resistant, Flame Retardant
• Supplied on 100 m reel
• UL & CSA Approved

RS PRO UL1015 Hook Up Wires Options – 24 AWG

• 100 Metre Reel, Black, RS stock no: 207-5288
• 100 Metre Reel, Green, RS stock no: 207-5289
• 100 Metre Reel, Red, RS stock no: 207-5290

Applications

Hook up wire can be used for a broad range of applications that include;

• Electrical Equipment
• Electronics
• Motors & Transformers

Why would you choose RS PRO for Hook Up Wires?

Our extensive range ensures we have your ideal solution available. Browsing our offer has vastly improved making it simple to select your hook up wire of choice. Our products are supported with technical information and customer service we are sure you will appreciate.
