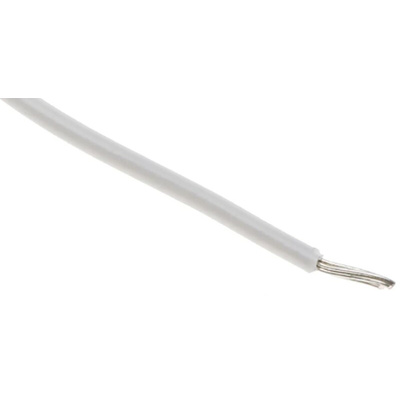

RS PRO White 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 100m, PVC Insulation

RS PRO Hook Up Wire, UL1569 - 22 AWG

RS PRO are please to introduce a new range of UL1569 hook up wires. These 22 AWG cable wire are flexible, constructed with tinned copper conductors and insulated with PVC. The quality of these cable wire is exceptional making them ideal for internal wiring of electrical equipment.

Benefits of UL1569 Hook Up Wire

Upon inspection the cables flexible with a solid construction, core strands are tinned copper and have a voltage rating of 300 V. The equipment wires are protected with insulation made from high-quality PVC ensuring the wires are protected from abrasion, resistant to solvents, water and oil.

What is hook up wire used for?

These type of hook-up wires are frequently found within the everyday household and workplace appliances. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals.

Features and Benefits

• Voltage rating 300 V
• Rated Temperature: 105°C
• Core Strands: 7/0.25 mm
• Tinned copper conductor wire - 22 AWG (American Wire Gauge)
• Cross Sectional Area: 0.33 mm²
• Insulation: PVC
• Supplied on 100 m reel
• UL, RoHS

RS PRO UL10569 Hook Up Wires Options – 22 AWG

• 100 Metre Reel, Black, RS stock no: 207-5303
• 100 Metre Reel, Blue, RS stock no: 207-5304
• 100 Metre Reel, Green, RS stock no: 207-5305
• 100 Metre Reel, Red, RS stock no: 207-5306
• 100 Metre Reel, White, RS stock no: 207-5307

Applications

Hook up wire can be used for a broad range of internal wiring that include;

• Switchboards
• Electronic and electrical equipment
• Household; Radios & Televisions
• Control Monitors
