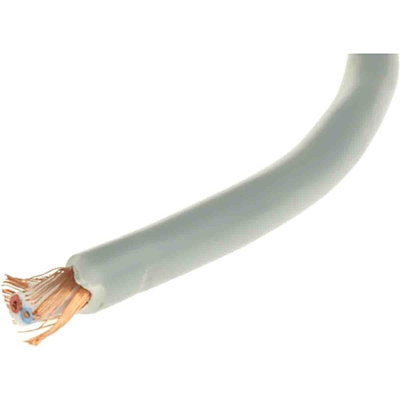

RS PRO Screened 2 Core Microphone Cable, 0.22 mm² CSA, 5.5mm od, 100m, Grey

RS PRO Multicore Microphone Cable, 100m

RS PRO introduces this high quality, flexible cable; designed for use with live and studio microphones but can also be used for equipment interconnect. Intended to fulfil the conflicting requirements of flexibility and screening properties, therefore makes it suitable for free-standing and hand-held microphone applications.

Engineered for a reliable and uninterrupted sound, the audio multicore cable is screened for EMI protection, meaning it has extra protection from interference that could affect sound quality.

The PVC sheath offers an excellent standard of protection and flexibility, this ensures the cable is protected from damage by twisting and bending and impact. Which makes the cable is suitable for use in most professional audio applications.

Two 28/0.1 mm plain annealed copper stranded conductors, PVC insulated with a single lap screen constructed from plain annealed copper.

Features and Benefits

• Multicore Audio cable with two cores, screened for EMI protection


• PVC outer sheath which offers protection and flexibility


• PVC insulation


• Self-extinguishing


• Diameter 5.5 mm


• Grey colour for discreet use


• Voltage rating – 300 V

Applications

This multicore cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers.
Multicore cable is suitable for:

• Live stages and theatres


• Professional studio setups


• Hobbyist and custom audio setups

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
