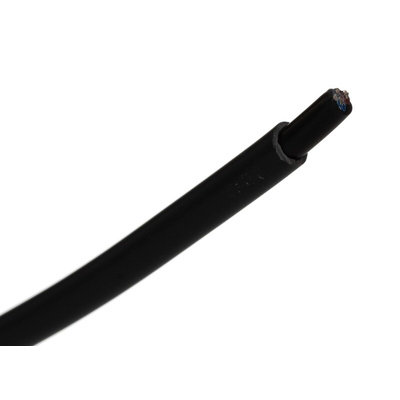

RS PRO Screened 3 Core Microphone Cable, 0.22 mm² CSA, 4mm od, 100m, Black

RS PRO 3 Core Microphone Cable

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a three-core screened microphone cable that offers a unique blend of versatility, quality, and strength. The RS PRO multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers.

Why would you choose this multicore microphone cable?

High-quality microphone cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers PE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies.

Features and Benefits

• Insulation Material 1: PE
• Insulation Material 2: Semi-Conductive PE
• Black PVC Jacket
• Cross-Sectional Area: 0.22 mm²
• Core colours: Natural, Blue, Red
• Operating voltage: 60 V
• Operating temperature: -20∼+70 °C
• Conductor resistance (20°C Ω/km): 92 max.
• Insulation DC Resistance (20 °C MΩ*Km): 200min.

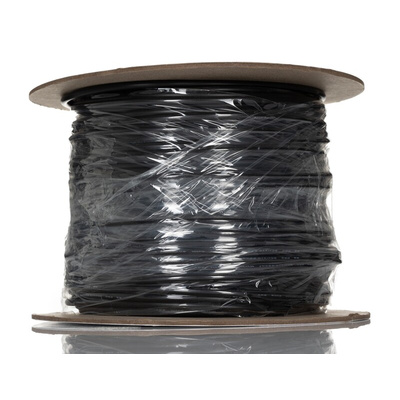

• 100 m Reel

Construction

• Tinned Copper Conductor
• Insulation
• PVC Jacket

Applications

• Live stages and theatres
• Audio & sound system
• Professional studio
• Hobbyist and custom audio setups

Why would you choose RS PRO for multicore microphone cable?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
