RS PRO Microphone Cable, 0.5 mm² CSA, 3.4mm od, 100m

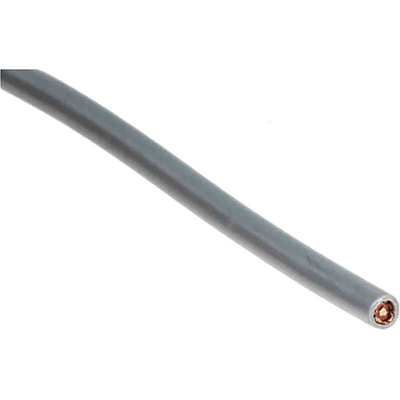

RS PRO Single Core Screened Microphone Cable

RS PRO introduces this single-core screened microphone cable that offers flexibility, quality, and durability. Constructed with a bare copper conductor, PVC insulation, copper braid and a PVC outer sheath.

Features and Benefits

• Single Core Screened Cable


• Cross-Sectional Area: 0.5 mm²


• PVC Insulated


• Core colours: Red


• Operating voltage: 30 V


• Operating temperature: -20∼+60 °C


• Conductor resistance (20°C Ω/km): 37 max.


• Insulation DC Resistance (20°C MΩ*Km): 500min.


• Outer Diameter: 3.4 mm


• 100 m reel

Applications

This microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers.
Multicore microphone cable is suitable for:

• Communication


• Signal Control Systems


• Live stages and theatres


• Professional studio setups


• Hobbyist and custom audio setups

Why would you choose this screened cable?

High-quality cables are vital in audio sound environments; This RS PRO single core cable is engineered for a reliable and uninterrupted sound, the audio cable is screened for EMI protection, meaning the cable has extra protection from interference that could affect sound quality.

The PVC sheath offers an excellent standard of protection and flexibility, this ensures the cable is protected from damage by twisting and bending and impact.

Why choose RS PRO for microphone cable?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
