RS PRO Screened 2 Core Microphone Cable, 0.078 mm² CSA, 2 x 4mm od, 100m, Grey

RS PRO Twin Lapped Screened Microphone Cable

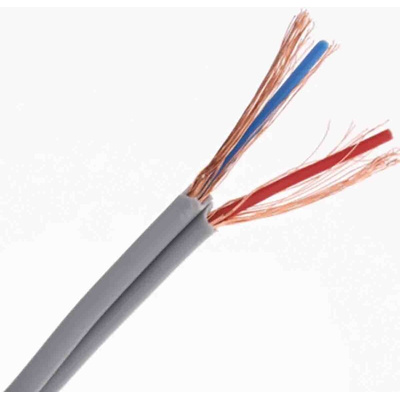

RS PRO continues to support sound engineers with the latest high-quality cables, here we are pleased to introduce a two-core lapped screened microphone cable that offers a unique blend of versatility, quality, and strength. Consist of two individually screened plain copper stranded 10//0.36 mm conductors laid side by side in a flat figure 8 grey PVC outer sheath.

Why would you choose this lapped screened cable?

High-quality cables are vitally important in audio sound applications. They must be able to relay signals without interference and withstand the twisting and bending commonly associated with live stage and studio setup. The RS PRO multicore microphone cable has all these features and offers PE insulation material for flexibility and protection, the ideal solution when creating your own audio, microphone cable assemblies.

Features and Benefits

• Screened Cable - 2 Core
• Cross-Sectional Area: 0.078 mm²
• PE Insulated
• Core colours: Red & Blue
• Operating voltage: 30 V
• Operating temperature: -20∼+60 °C
• Conductor resistance (20°C Ω/km): 237 max.
• Insulation DC Resistance (20°C MΩ*Km): 500min.
• 100 m Reel

Construction

• Conductor
• Insulation
• Spiral Shield
• PVC Grey Jacket

Applications

• Communication
• Signal Control Systems
• Professional studio
• Hobbyist and custom audio setups

Why would you choose RS PRO for microphone cable?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
