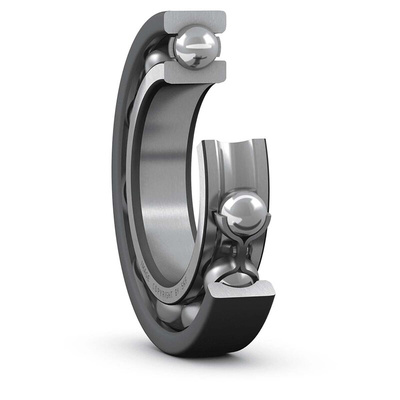

SKF 6322/C3VL0241 Single Row Deep Groove Ball Bearing- Open Type 110mm I.D, 240mm O.D

SKF Ball Bearing, 110 mm ID, 240 mm OD - 6322/C3VL0241

This SKF ball bearing is designed to deliver reliable and durable service. You'll find it commonly used in electric generators and motors. Known as an INSOCOAT bearing, it's coated with an insulating aluminium oxide layer that stops electric current from passing through the unit. This prevents surface damage and ensures that its lubrication doesn't degrade quickly, so you don't have to worry about frequent maintenance. The bearing also features a large internal clearance which accommodates thermal expansion, so it's the ideal choice for high-temperature applications.

• Open-end type bearing for low friction generation
• INSOCOAT insulation makes the bearing suitable for use in generators and motors
• Inside diameter of 110 mm, outside diameter of 240 mm
• Versatile race width of 50 mm

Application Information

• Railways
• Electric motors and generators
• Wind energy

What type of coating method is used in INSOCOAT bearings?

The aluminium-oxide layer is added to the bearing using a plasma-coating technology that ensures a smooth, quality finish.

Are INSOCOAT bearings susceptible to condensation?

No – INSOCOAT bearings from SKF are treated with a sealant that prevents condensation.
