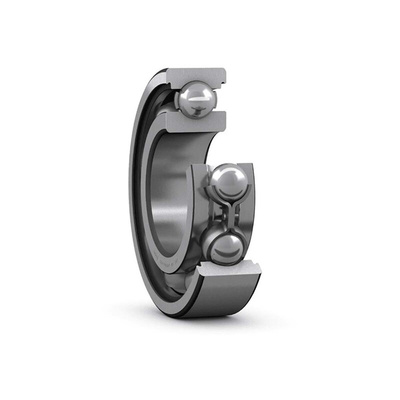

SKF 6324 Single Row Deep Groove Ball Bearing- Open Type 120mm I.D, 260mm O.D

SKF Deep-Groove Ball Bearing, 120 mm ID, 260 mm OD - 6324

Looking for a low-maintenance ball bearing that can handle high speeds and both radial and axial loads? This deep-groove ball bearing from SKF is particularly versatile and can be used for heavy-duty applications. It has an inside diameter of 120 mm and an outside diameter of 260 mm, with a race width of 55 mm. The open-type ball bearing allows lubricant to travel freely and enables easy re-lubrication. This component is suitable for clean environments where you don't need to worry about dirt contaminating the workings.

• Creates less friction torque, lowering operating temperature and cutting energy use
• Needs little maintenance and offers a long service life
• Made from durable steel

Application Information

• Gearboxes
• Manufacturing machinery
• Electric motors

Why should I choose a deep-groove ball bearing?

Featuring an inner ring and an outer ring with balls set in a raceway in between, deep-groove ball bearings are efficient and versatile. They operate quietly and can handle high speeds as well as both radial and axial loads.

What should I use to lubricate an open-type ball bearing?

Oils are the ideal option for lubricating open bearings, as they're less viscous than greases. This achieves more efficient running with lower torque, enabling higher speeds.

The product has both static and dynamic load ratings. The static load refers to a constant force exerted on the bearing that doesn't change. The dynamic load is a regularly shifting force, in this case, the radial force. The dynamic load rating for this bearing is 610 kN, and the static load rating is 735 kN.
